2392846-1

2392846-1

Active
TE Connectivity AMP Connectors

Z-PACK/B22 RAF 110P EON

Find alt

Description

General part information

Z-PACK 2mm HM Series

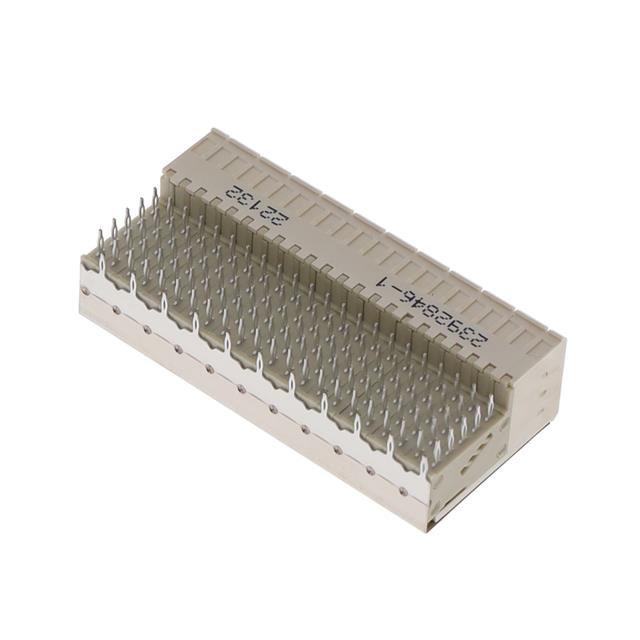

Hard Metric Backplane PCB Mount Receptacle, ≤1 Gb/s, 22 Column, 5 Row, Mezzanine, 110 Position, 2 mm [.078 in] Centerline, Right Angle, Z-PACK 2mm HM

Technical Specifications

Parameters and characteristics for this part

Specification2392846-1
Connector StyleB 22
Connector TypeReceptacle, Female Sockets
Connector UsageBackplane
Contact FinishGold
Contact Finish Thickness50 µin
Mounting TypeRight Angle, Through Hole, Board Edge
Number of Positions110
Number of Positions LoadedAll
Number of Rows5
Pitch0.079 in
TerminationPress-Fit
