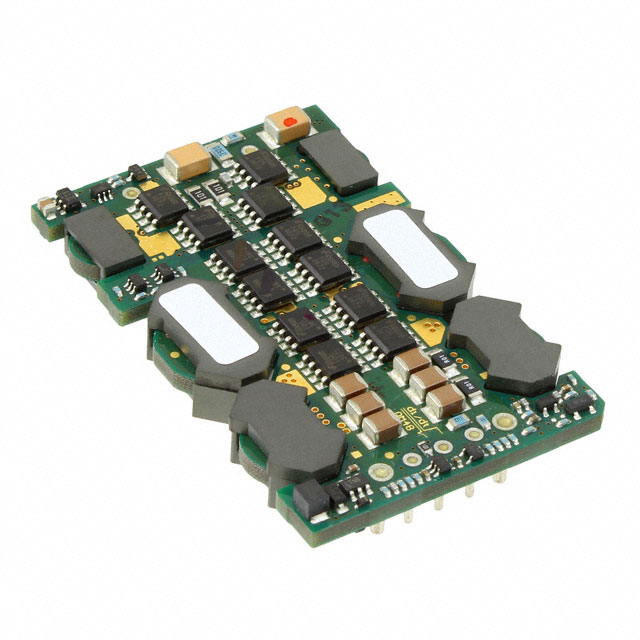

QM48T14120-NAB0G

Active

Bel Power Solutions

DC DC CONVERTER 12V 168W

Deep-Dive with AI

Search across all available documentation for this part.

QM48T14120-NAB0G

Active

Bel Power Solutions

DC DC CONVERTER 12V 168W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QM48T14120 Series

Intermediate Bus Converter DC DC Converter 1 Output 12V 14A 36V - 75V Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QM48T14120-NAB0G	QM48T14120 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	14 A	14 A
Efficiency	92 %	92 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP	OTP, Remote On/Off, OVP, UVLO, OCP, SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	1/4 Brick, 8-DIP Module	1/4 Brick, 8-DIP Module
Power (Watts)	168 W	168 W
Size / Dimension [x]	2.3 in	2.28 - 2.3 in
Size / Dimension [x]	58.4 mm	57.9 - 58.4 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [z]	0.33 in	0.33 - 0.42 in
Size / Dimension [z]	8.3 mm	8.3 - 10.7 mm
Type	Intermediate Bus Converter	Intermediate Bus Converter, Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2000 V	2000 V
Voltage - Output 1	12 V	12 V

QM48T14120 Series

DC DC CONVERTER 12V 168W

Part	Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Package / Case	Control Features	Type	Voltage - Output 1	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Applications
Bel Power Solutions QM48T14120-NAB0	OCP, OTP, OVP, Remote On/Off, UVLO	14 A	75 V	36 V	168 W	1/4 Brick, 8-DIP Module	Active Low, Enable	Intermediate Bus Converter	12 V	Through Hole	85 °C	-40 °C	2000 V	92 %	0.33 in	2.28 in	8.3 mm	36.8 mm	57.9 mm	1.45 in	1	ITE (Commercial)
Bel Power Solutions QM48T14120-PAA0	OCP, OTP, OVP, Remote On/Off, UVLO	14 A	75 V	36 V	168 W	1/4 Brick, 8-DIP Module	Active High, Enable	Intermediate Bus Converter	12 V	Through Hole	85 °C	-40 °C	2000 V	92 %	0.33 in	2.28 in	8.3 mm	36.8 mm	57.9 mm	1.45 in	1	ITE (Commercial)
Bel Power Solutions QM48T14120-NAB0G	OCP, OTP, OVP, Remote On/Off, UVLO	14 A	75 V	36 V	168 W	1/4 Brick, 8-DIP Module	Active Low, Enable	Intermediate Bus Converter	12 V	Through Hole	85 °C	-40 °C	2000 V	92 %	0.33 in	2.3 in	8.3 mm	36.8 mm	58.4 mm	1.45 in	1	ITE (Commercial)
Bel Power Solutions QM48T14120-NDB0G	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	14 A	75 V	36 V	168 W	1/4 Brick, 8-DIP Module	Active Low, Enable	Isolated Module	12 V	Through Hole	85 °C	-40 °C	2000 V	92 %	0.42 in	2.3 in	10.7 mm	36.8 mm	58.4 mm	1.45 in	1	ITE (Commercial)
Bel Power Solutions QM48T14120-NDA0G	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	14 A	75 V	36 V	168 W	1/4 Brick, 8-DIP Module	Active Low, Enable	Isolated Module	12 V	Through Hole	85 °C	-40 °C	2000 V	92 %	0.42 in	2.3 in	10.7 mm	36.8 mm	58.4 mm	1.45 in	1	ITE (Commercial)
