Specification	36561040M330T

Current - Saturation (Isat)	4.8 A
Current Rating	4.4 A
DC Resistance (DCR) (Max)	92 mOhm
Height - Seated (Max)	0.157 in
Inductance	33 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension Length	0.453 in
Size / Dimension Width	0.394 in
Tolerance	20 %
Type	Molded

Sigma 3656 Series

...

Part	Current Rating	Current - Saturation (Isat)	Inductance	Size / Dimension Length	Size / Dimension Width	DC Resistance (DCR) (Max)	Mounting Type	Height - Seated (Max)	Package / Case	Shielding	Type	Ratings	Tolerance	Inductance Frequency - Test	Operating Temperature (Max)	Operating Temperature (Min)	Package Name
TE Connectivity AMP Connectors 36560754M470T	2.4 A	4.1 A	47 µH	0.303 in	0.283 in	171.6 mOhm	Surface Mount	0.213 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C
TE Connectivity AMP Connectors 36560530M1R2T	8.5 A	9.5 A	1.2 µH	0.213 in	0.205 in	16 mOhm	Surface Mount	0.118 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C
TE Connectivity AMP Connectors 36560420MR68T	7 A	8 A	680 nH	0.173 in	0.165 in	18 mOhm	Surface Mount	0.079 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C	SMD
TE Connectivity AMP Connectors 36560754M2R2T	9.7 A	14.8 A	2.2 µH	0.303 in	0.283 in	11.4 mOhm	Surface Mount	0.213 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C
TE Connectivity AMP Connectors 36561054M100T	8.7 A	12.7 A	10 µH	0.453 in	0.394 in	24.2 mOhm	Surface Mount	0.213 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C
TE Connectivity AMP Connectors 36560630MR56T	16.5 A	18 A	560 nH	0.276 in	0.26 in	4.5 mOhm	Surface Mount	0.118 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C
TE Connectivity AMP Connectors 36561265M820T	4 A	4.5 A	82 µH	0.53 in	0.496 in	135 mOhm	Surface Mount	0.256 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C
TE Connectivity AMP Connectors 36561770M680T	5.2 A	6.5 A	68 µH	0.74 in	0.681 in	85 mOhm	Surface Mount	0.276 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C
TE Connectivity AMP Connectors 36561040M101T	2 A	2.3 A	100 µH	0.453 in	0.394 in	340 mOhm	Surface Mount	0.157 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C
TE Connectivity AMP Connectors 36560630M4R7T	6 A	9 A	4.7 µH	0.276 in	0.26 in	33 mOhm	Surface Mount	0.118 in	Nonstandard	Shielded	Molded	AEC-Q200	20 %	100 kHz	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

ENG_CD_2176785_BA.pdf

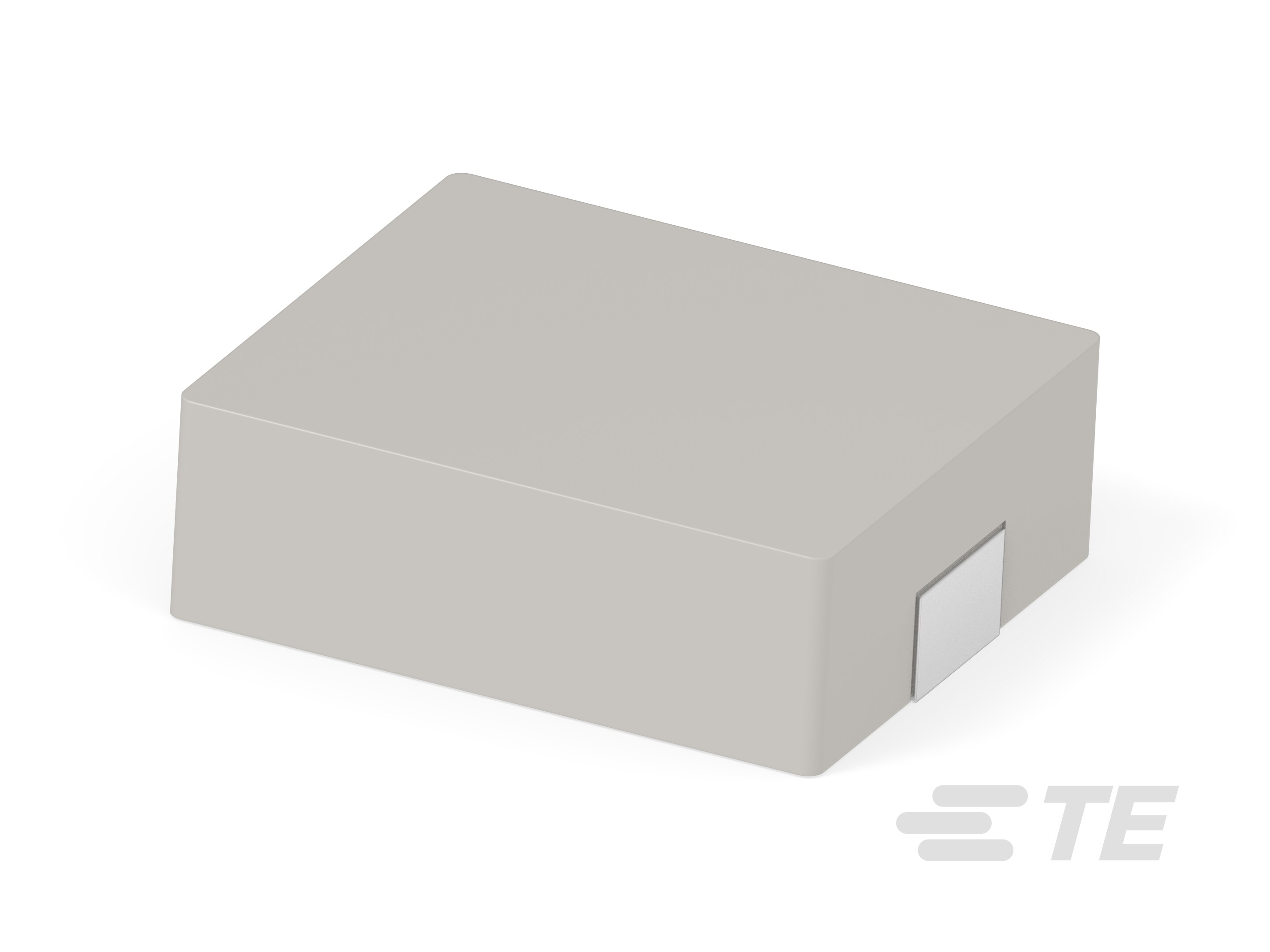

Automotive Grade SMD Power Inductor - Type 3656 Series
