MAL213237479E3
ActiveVishay Dale

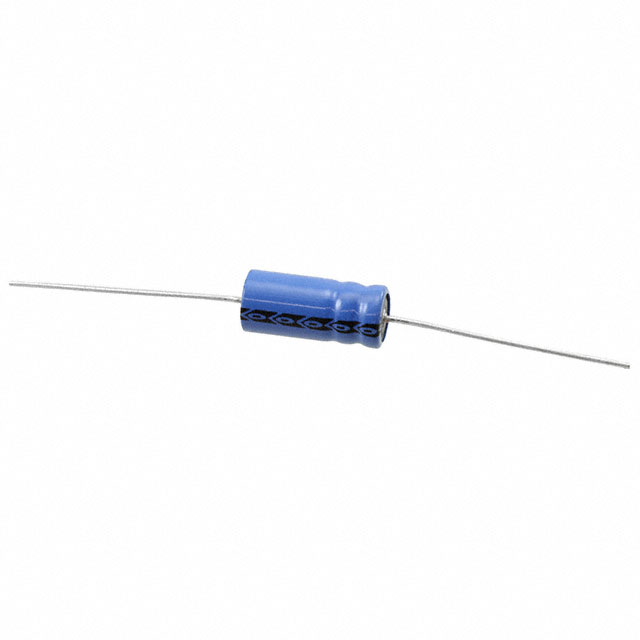

CAP ALUM 47UF 40V AXIAL TH
MAL213237479E3
ActiveVishay Dale
CAP ALUM 47UF 40V AXIAL TH
Description
General part information
MAL213237479E3
47 µF 40 V Aluminum Electrolytic Capacitors Axial, Can 3Ohm @ 100Hz 10000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL213237479E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 3 Ohm |
| Impedance | 1.4 Ohm |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 120 mA |
| Size / Dimension Diameter | 0.315 in |
| Size / Dimension Length | 0.709 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 40 V |
