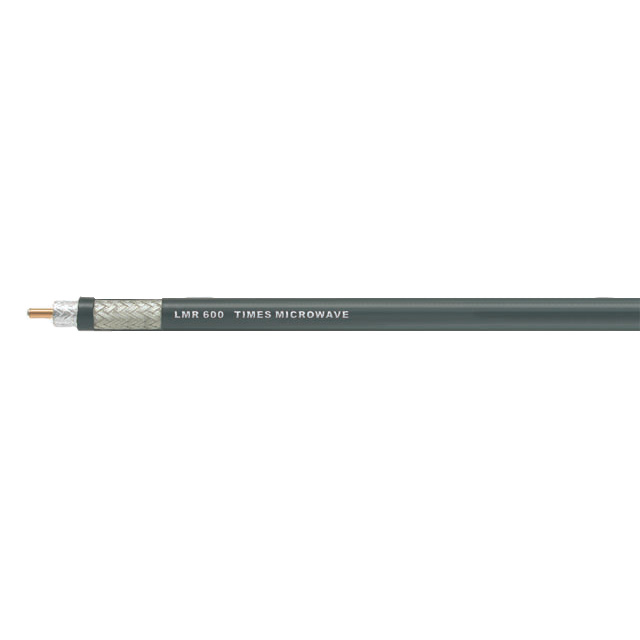

LMR-600-FR

Active

Amphenol Times Microwave Systems

CABLE COAXIAL RISER 250'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LMR-600-FR

Active

Amphenol Times Microwave Systems

CABLE COAXIAL RISER 250'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1095.60
		5	$ 1027.12
		10	$ 958.65
		25	$ 890.18
		50	$ 855.94
		100	$ 821.70

Description

General part information

LMR-600 Series

Coaxial - Riser Cable 250.0' (76.20m) 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-600-FR	LMR-600 Series

Cable Type	Coaxial - Riser	Coaxial - Plenum, Coaxial, Coaxial - Riser
Conductor Material	Aluminum, Copper Coated	Aluminum, Copper Coated, Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	11.56 mm	11.56 mm
Dielectric Diameter [diameter]	0.455 in	0.455 in
Dielectric Material	Foam Polyethylene (FPE)	Polytetrafluoroethylene (PTFE), Foam Polyethylene (FPE)
Features	Fire Retardant	Flame Retardant, Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 - 75 Ohms
Jacket (Insulation) Diameter [diameter]	14.99 mm	14.35 - 14.99 mm
Jacket (Insulation) Diameter [diameter]	0.59 in	0.565 - 0.59 in
Jacket (Insulation) Material	Polyethylene (PE), Riser	Plenum, Poly-Vinyl Chloride (PVC), Polyethylene (PE), Low Smoke Zero Halogen (LSZH), Thermoplastic Elastomer (TPE), Poly-Vinyl Chloride (PVC), Riser, Polyethylene (PE), Riser, Fluoropolymer, Plenum
Jacket Color	Black	Orange, Black, Red
Length	76.2 m, 15.24 m	15.24 - 76.2 m
Length	3000 ", 50 ft	50 - 3000 ft
Length	-	Enter Number of Feet in Order Quantity
Length [x]	100 ft, 10 ft	1 - 100 ft
Length [x]	30.48 m, 3.05 m	3.05 - 300 mm
Operating Temperature [Max]	85 °C	75 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 - -5 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid, Foil
Spool Size	-	500 '
Spool Size	-	152.4 m
VoP, Velocity of Propagation	85	76 - 87

LMR-600 Series

CABLE LMR-600 FRPVC 50'

Part	Jacket (Insulation) Material	Jacket Color	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Features	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Material	Length	Length	Shield Material	Shield Type	Conductor Strand	Length [x]	Length [x]
Amphenol Times Microwave Systems LMR-600-LLPL	Plenum, Poly-Vinyl Chloride (PVC)	Orange	Coaxial - Plenum	75 ░C	-5 °C	Aluminum, Copper Coated	Flame Retardant	76	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Polytetrafluoroethylene (PTFE)	15.24 m	50 ft	Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-PVC-W	Poly-Vinyl Chloride (PVC)		Coaxial	85 °C	-40 °C	Aluminum, Copper Coated		85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-LSZH	Low Smoke Zero Halogen (LSZH), Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Copper, Bare		85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid	1 ft	300 mm
Amphenol Times Microwave Systems LMR-600-75-FR	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated	Fire Retardant	87	11.56 mm	0.455 in	75 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-DB	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated	Direct Burial, Watertight	85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid	Solid	10 ft, 100 ft	3.05 m, 30.48 m
Amphenol Times Microwave Systems LMR-600	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated		85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid	Solid	10 ft, 100 ft	3.05 m, 30.48 m
Amphenol Times Microwave Systems LMR-600-75-DB	Polyethylene (PE)	Black	Coaxial	85 °C	-40 °C	Aluminum, Copper Coated	Direct Burial	87	11.56 mm	0.455 in	75 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-UF	Thermoplastic Elastomer (TPE)	Black	Coaxial	85 °C	-40 °C	Copper, Bare		87	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid		100 ft	30.48 m
Amphenol Times Microwave Systems LMR-600-FR-PVC	Poly-Vinyl Chloride (PVC), Riser	Black	Coaxial - Riser	85 °C	-40 °C	Aluminum, Copper Coated	Fire Retardant	85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)			Aluminum, Copper, Tinned	Braid	Solid
Amphenol Times Microwave Systems LMR-600-FR	Polyethylene (PE), Riser	Black	Coaxial - Riser	85 °C	-40 °C	Aluminum, Copper Coated	Fire Retardant	85	11.56 mm	0.455 in	50 Ohms	14.99 mm	0.59 in	Foam Polyethylene (FPE)	15.24 m, 76.2 m	50 ft, 3000 "	Aluminum, Copper, Tinned	Braid	Solid	10 ft, 100 ft	3.05 m, 30.48 m
