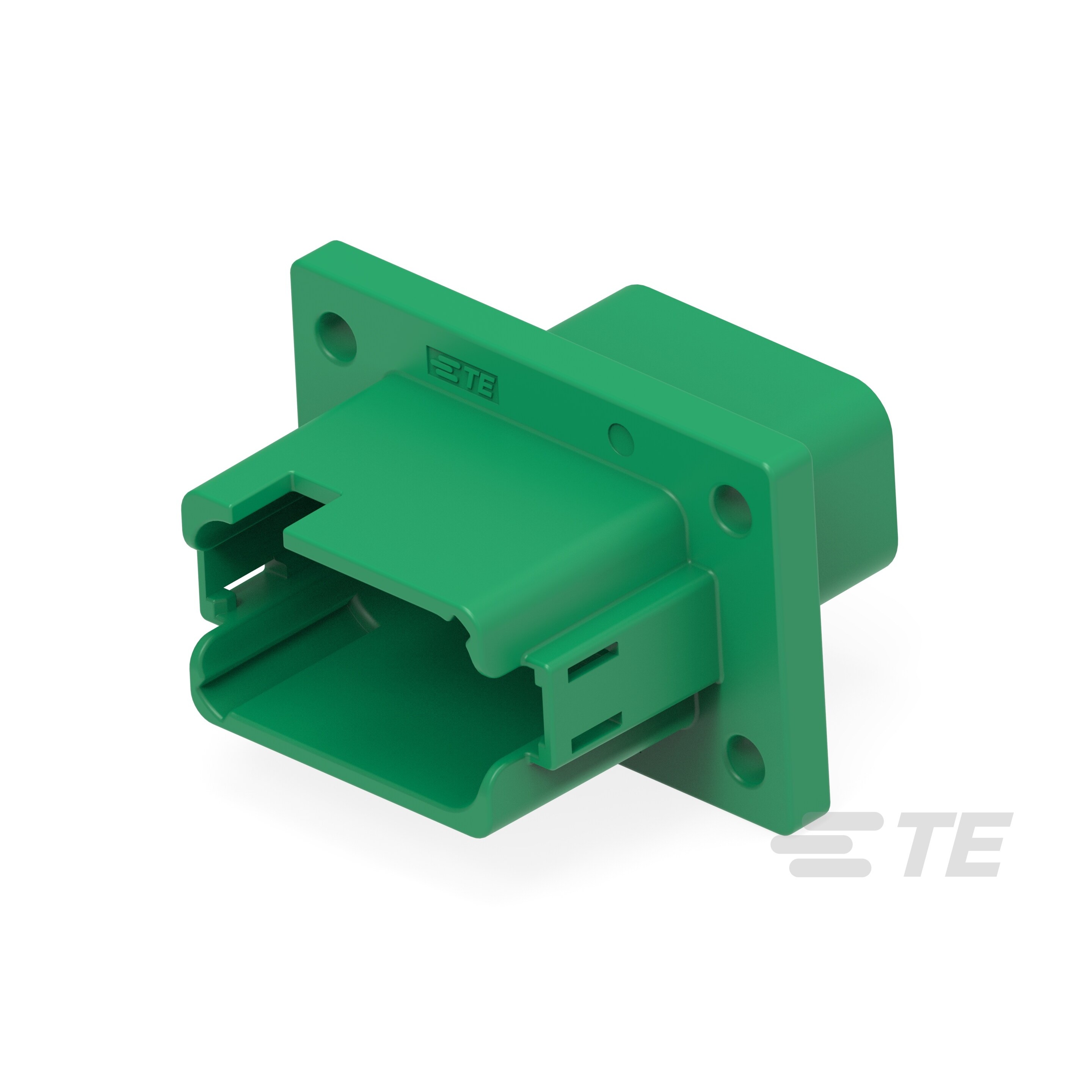

DT04-12PC-BL13
ActiveTE Connectivity AMP Connectors
REC, 12P, GRN, E, ENH KEY, FLANG
DT04-12PC-BL13
ActiveTE Connectivity AMP Connectors
REC, 12P, GRN, E, ENH KEY, FLANG
Description
General part information
DT04-12PC-BL13
REC, 12P, GRN, E, ENH KEY, FLANG
Technical Specifications
Parameters and characteristics for this part
| Specification | DT04-12PC-BL13 |
|---|---|
| Color | Green |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Sealed |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.359 in |
| Row Spacing | 0.175 in |
