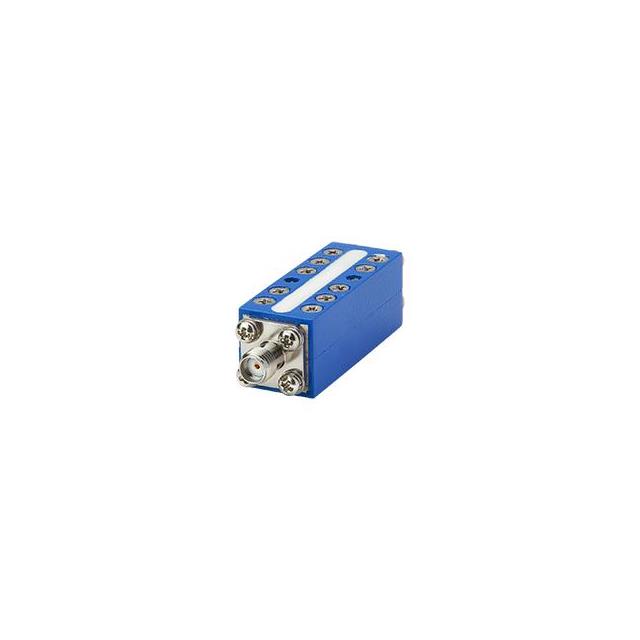

ZBSS-9G-S+
ActiveMini-Circuits
RF FILTER BAND PASS 9GHZ SMA
ZBSS-9G-S+
ActiveMini-Circuits
RF FILTER BAND PASS 9GHZ SMA
Description
General part information
ZBSS-9G-S+
9GHz Center Frequency Band Pass RF Filter (Radio Frequency) 6GHz Bandwidth 2.5dB SMA In line Module
Technical Specifications
Parameters and characteristics for this part
| Specification | ZBSS-9G-S+ |
|---|---|
| Bandwidth | 6 GHz |
| Filter Type | Band Pass |
| Frequency (Center) | 9 GHz |
| Height (Max) | 0.698 in |
| Insertion Loss | 2.5 dB |
| Mounting Type | Chassis Mount |
| Package / Case | SMA In line Module |
| Size / Dimension Length | 1.559 in |
| Size / Dimension Width | 0.598 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
