413169-E
ActiveTE Connectivity AMP Connectors

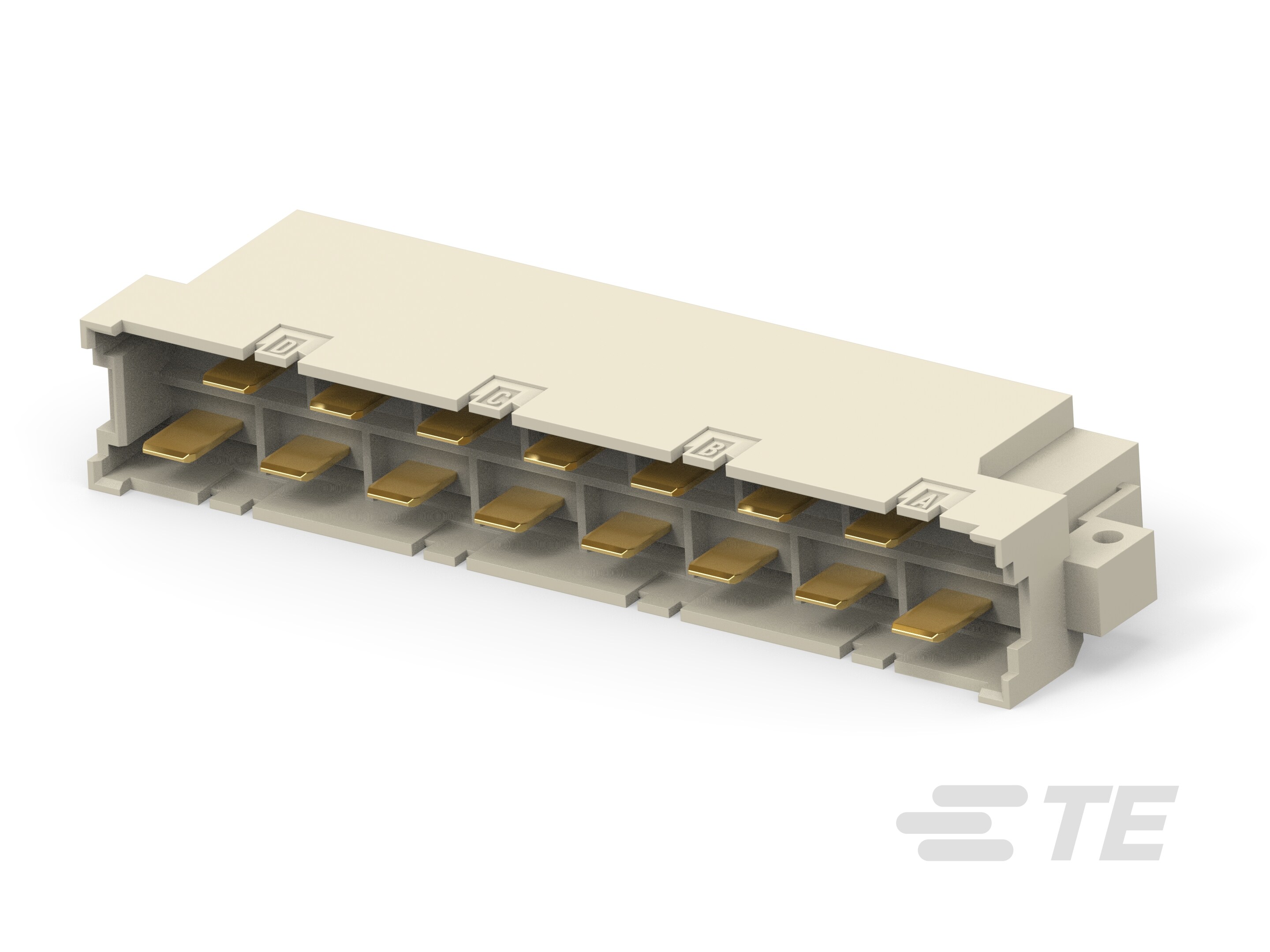

DIN 41612 CONNECTORS STVH15 15 M ZD VV 3-00 LAFD * A039 199 E
413169-E
ActiveTE Connectivity AMP Connectors
DIN 41612 CONNECTORS STVH15 15 M ZD VV 3-00 LAFD * A039 199 E
Description
General part information
- Series
Plug, Board-to-Board, 15 Position, 5.08 mm [.2 in] Centerline, Printed Circuit Board, 2 Row, Right Angle, Standard DIN Size, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 413169-E |
|---|---|
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Level, Class | 1 |
| Material - Insulation | Polycarbonate, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.3 in |
| Position Types | Power |
| Style | H 15 |
| Termination | Solder |
