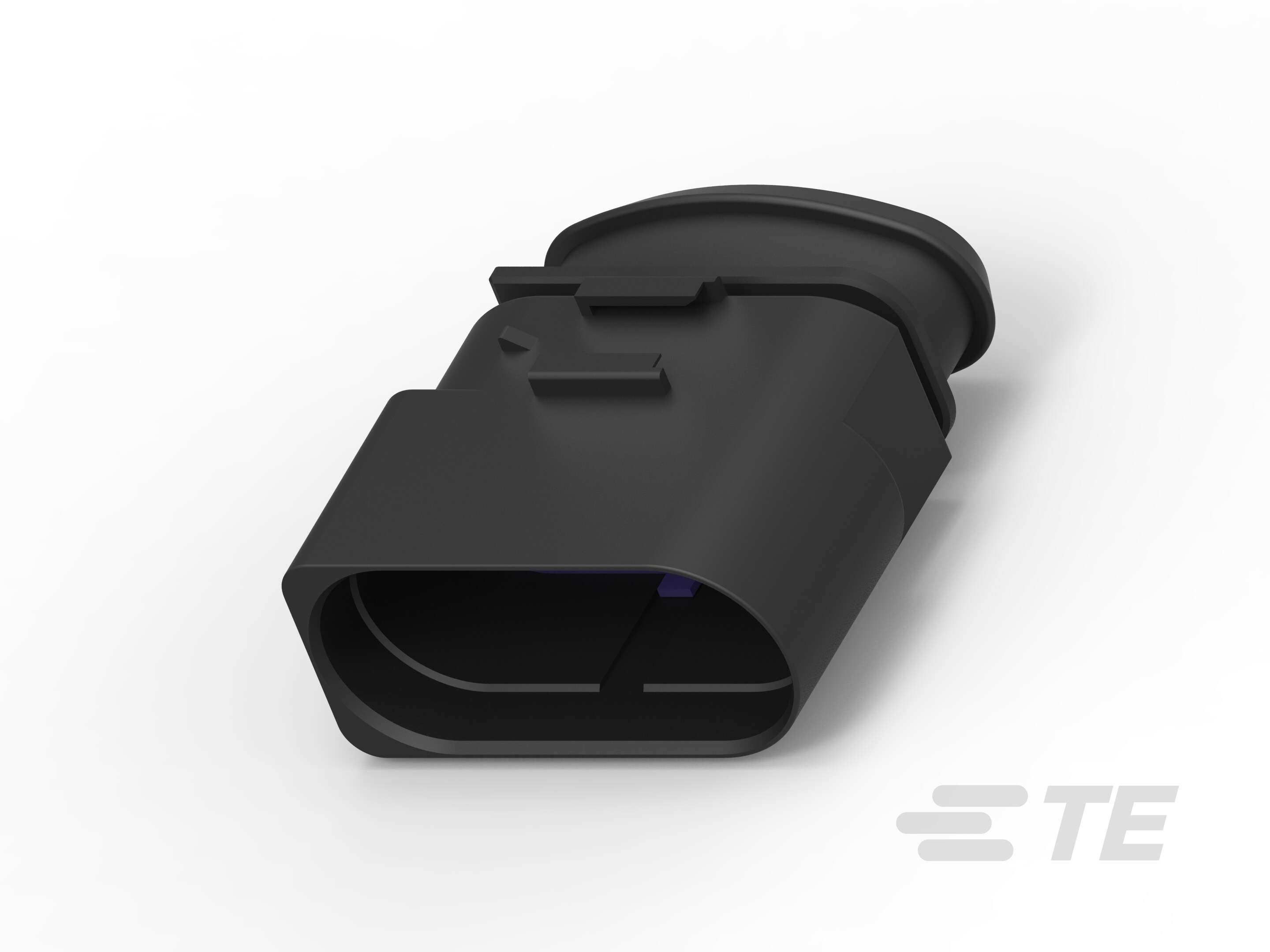

Specification	1718167-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Locking Ramp
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-40 °C
Pitch	0.236 in
Row Spacing	0.236 in

Standard Power Timer Series

Part	Type	Contact Termination	Contact Finish	Pin or Socket	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Fastening Type	Pitch	Connector Type	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Number of Rows	Row Spacing	Mounting Type	Color	Insulation Material
TE Connectivity AMP Connectors 927837-1	Power	Crimp	Tin	Socket	13 AWG	17 AWG
TE Connectivity AMP Connectors 968037-2		Crimp	Tin	Socket	11 AWG	13 AWG
TE Connectivity AMP Connectors 964328-1	Power	Crimp	Tin	Socket	11 AWG	13 AWG
TE Connectivity AMP Connectors 927836-1	Power	Crimp	Tin	Socket	17 AWG	20.5 AWG
TE Connectivity AMP Connectors 2-964449-1		Crimp					Push-Pull	0.197 in	Plug	Male Pin	80 °C	-40 °C	16	2	0.236 in	Free Hanging (In-Line)	Gray	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 881632-1
TE Connectivity AMP Connectors 969042-1	Power	Crimp	Tin	Socket	13 AWG	17 AWG
TE Connectivity AMP Connectors 927833-1	Power	Crimp	Tin	Socket	13 AWG	17 AWG
TE Connectivity AMP Connectors 927824-1	Power	Crimp	Tin	Socket	11 AWG	13 AWG
TE Connectivity AMP Connectors 969044-5	Power	Crimp	Silver	Socket	11 AWG	13 AWG
