TCX142U050L2L
ObsoleteCornell Dubilier Knowles

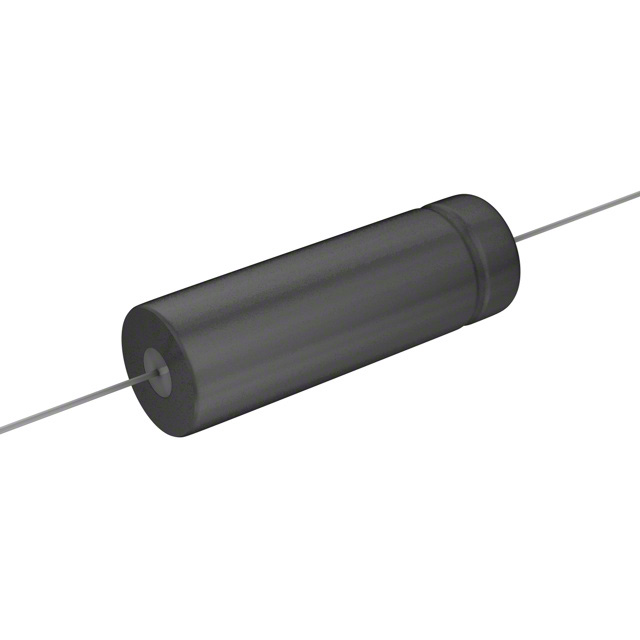

CAP ALUM 1400UF 50V AXIAL TH
TCX142U050L2L
ObsoleteCornell Dubilier Knowles
CAP ALUM 1400UF 50V AXIAL TH
Description
General part information
TCX142U050L2L
1400 µF 50 V Aluminum Electrolytic Capacitors Axial, Can 61mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | TCX142U050L2L |
|---|---|
| Applications | General Purpose |
| Capacitance | 1400 µF |
| ESR (Equivalent Series Resistance) | 61 mOhm |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 3.436 A, 3.92 A |
| Size / Dimension Diameter | 0.875 in |
| Size / Dimension Length | 2.625 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 50 V |
