9080LBC163206
ActiveSCHNEIDER ELECTRIC
PWR DISTR BLK 600V 350A
9080LBC163206
ActiveSCHNEIDER ELECTRIC
PWR DISTR BLK 600V 350A
Description
General part information
9080LBC163206

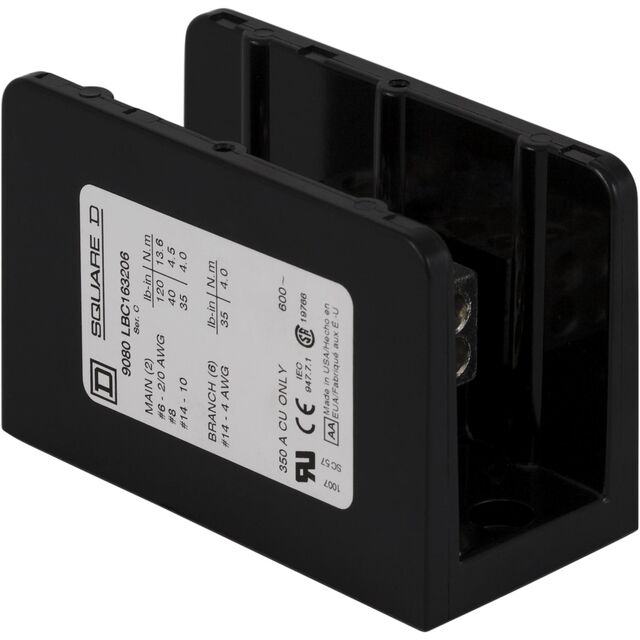

1 Pole Power Distribution Block 350 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 9080LBC163206 |
|---|---|
| Current Rating | 350 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 2 |
| Line Side Wire Size (Max) | 14 AWG, 14 |
| Line Side Wire Size (Max) | 14 AWG |
| Line Side Wire Size (Min) | 2/0 |
| Line Side Wire Size (Min) | 0 AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 6 |
| Load Side Wire/Stud Size (AWG) (Max) | 14 AWG |
| Load Side Wire/Stud Size (AWG) (Min) | 4 AWG |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 600 V |
