9080LBA165212

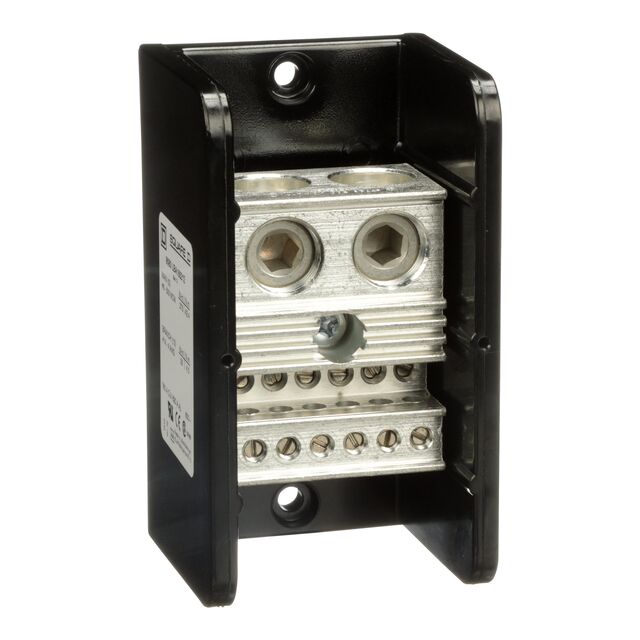

1 Pole Power Distribution Block 760 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 9080LBA165212 |
|---|---|
| Current Rating | 760 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 2 |
| Line Side Wire Cross-sectional Area | 500 MCM |
| Line Side Wire/Stud Designation | AWG, 4 |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 12 |
| Load Side Wire/Stud Size (AWG) (Max) | 14 AWG |
| Load Side Wire/Stud Size (AWG) (Min) | 4 AWG |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 600 V |
