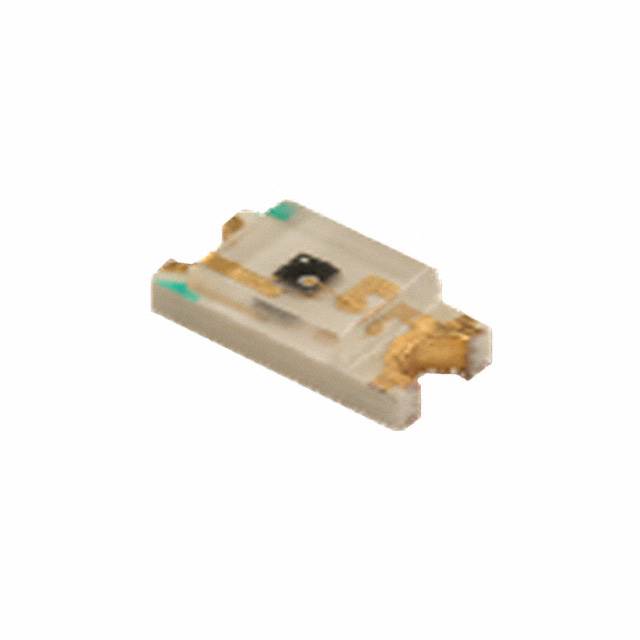

OP500
ObsoleteTT Electronics/BI
SENSOR PHOTO 935NM TOP VIEW 0805
OP500
ObsoleteTT Electronics/BI
SENSOR PHOTO 935NM TOP VIEW 0805
Description
General part information
OP500
Phototransistors 935nm Top View 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | OP500 |
|---|---|
| Current - Collector (Ic) (Max) | 20 mA |
| Current - Dark (Id) (Max) | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | Top View |
| Package / Case | 0805 (2012 Metric) |
| Power - Max | 75 mW |
| Viewing Angle | 150 ° |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Wavelength | 935 nm |
