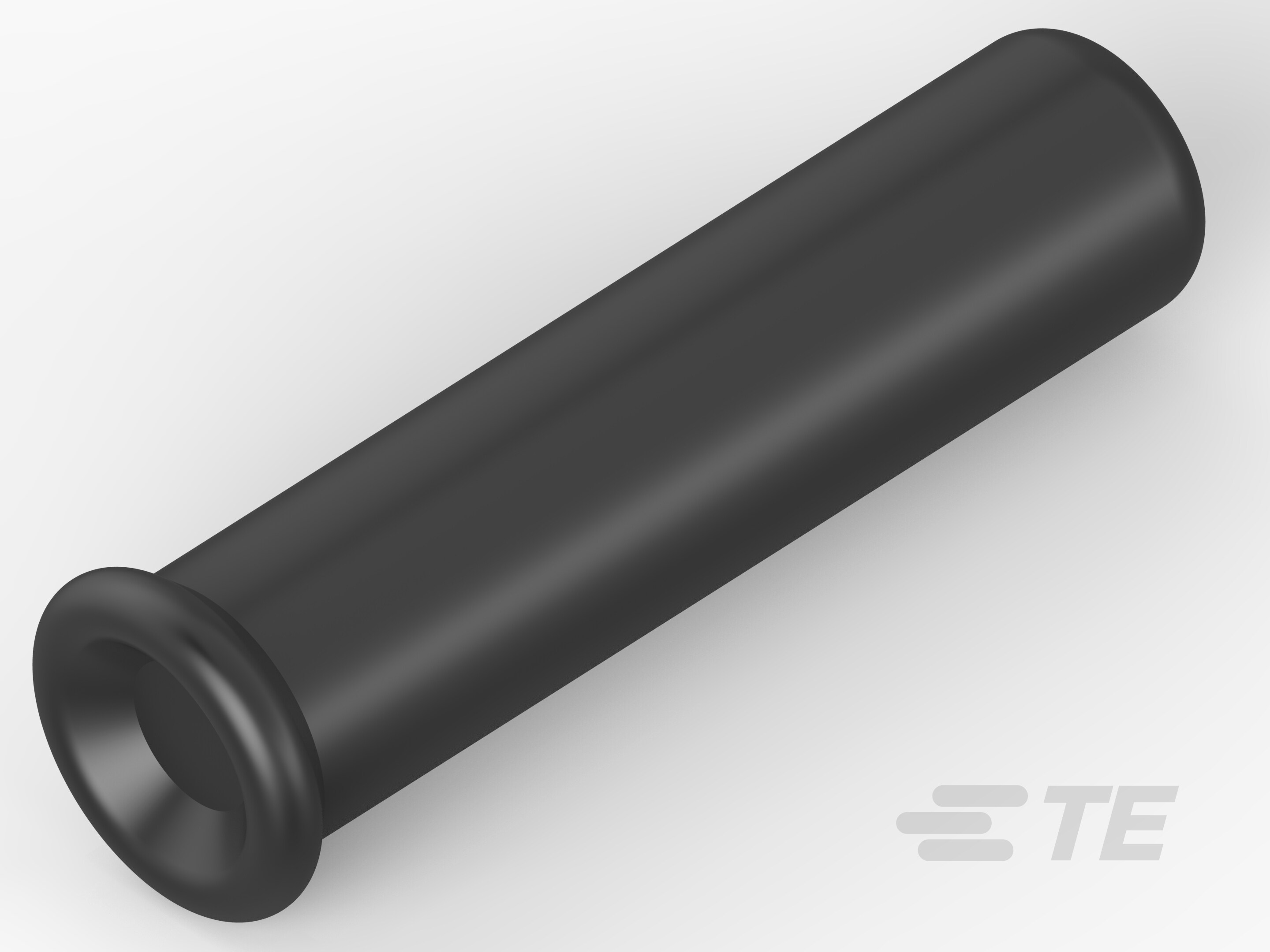

SOCKET,MIN-SPR W/H SN-AU SER-3-5050864-5

5050864-5

Active
TE Connectivity AMP Connectors

IC & COMPONENT SOCKET, 1 CONTACTS, PCB SOCKET, SERIES 3, BERYLLIUM COPPER

Find alt
SOCKET,MIN-SPR W/H SN-AU SER-3-5050864-5

5050864-5

Active
TE Connectivity AMP Connectors

IC & COMPONENT SOCKET, 1 CONTACTS, PCB SOCKET, SERIES 3, BERYLLIUM COPPER

Find alt

Description

General part information

5050864-5

6.53 mm [.257 in] Socket Length, 1.57 mm [.062 in] PCB Hole, Open Bottom, .326 – .518 mm² Wire, 22 – 20 AWG, Cable-to-Board, Pin Sockets

Technical Specifications

Parameters and characteristics for this part

Specification5050864-5
Accepts Pin Diameter (Max)0.033 in
Accepts Pin Diameter (Min)0.026 in
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialBeryllium Copper
Flange Diameter0.08 in
Length - Overall0.257 in
Mounting Hole Diameter (Max)0.063 in
Mounting Hole Diameter (Min)0.062 in
Socket Depth0.244 in
Tail TypeNo Tail
TerminationSolder
