B74121G0200M060
ActiveEPCOS - TDK Electronics
20VDC,0201,BI-DIR,5.3PF, 20NA@20
B74121G0200M060
ActiveEPCOS - TDK Electronics
20VDC,0201,BI-DIR,5.3PF, 20NA@20
Description
General part information
B74121G0200M060
32V (Typ) Clamp 16A Ipp Tvs Diode Surface Mount WL-CSP0201 SL
Technical Specifications
Parameters and characteristics for this part
| Specification | B74121G0200M060 |
|---|---|
| Applications | Telecom |
| Bidirectional Channels | 1 |
| Capacitance | 5.3 pF |
| Current - Peak Pulse | 16 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |

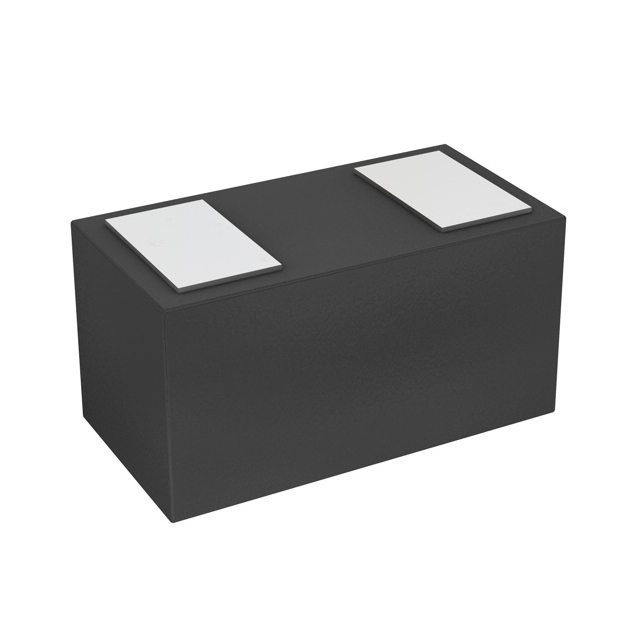

| Package / Case | 0201 (0603 Metric) |
| Package Name | WL-CSP0201 SL |
| Power Line Protection | No |
| Type | Zener |
| Voltage - Breakdown (Min) | 20 V |
| Voltage - Clamping (Max) (Typ) | 32 V |
| Voltage - Reverse Standoff (Max) | 20 V |
