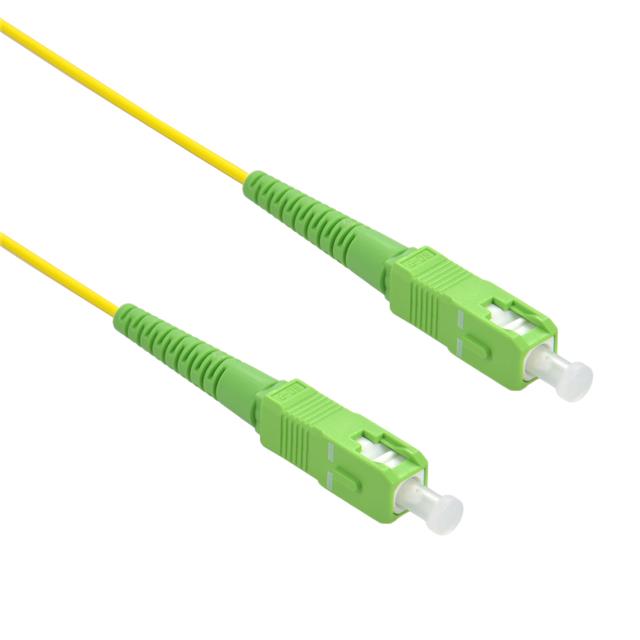

CM-105137BSTK
Cable Fiber Optic SC/APC To SC/APC 9/125 6.6' (2.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | CM-105137BSTK |
|---|---|
| 1st Connector | SC/APC |
| 2nd Connector | SC/APC |
| Cable Type | Fiber Patch |
| Color - Cable | Yellow |
| Color - Connectors | Green |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Insertion Loss | 0.3 dB |
| Length - Overall | 6.6 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | OFNR |
| Return Loss | 60 dB |
| Type | Simplex, Singlemode |
