Description
General part information

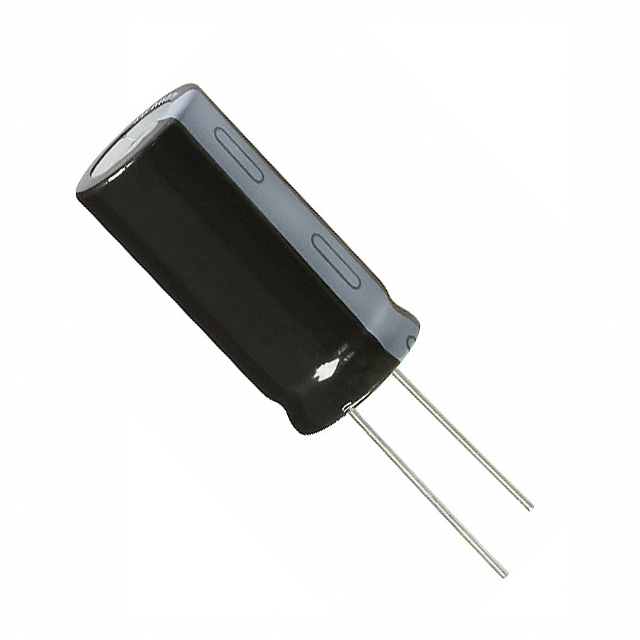

ESMG250ELL822MN40S
8200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | ESMG250ELL822MN40S |
|---|---|
| Applications | General Purpose |
| Capacitance | 8200 µF |
| Height - Seated (Max) | 1.634 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 3.0348 A, 2.81 A |
| Size / Dimension Diameter | 0.787 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
