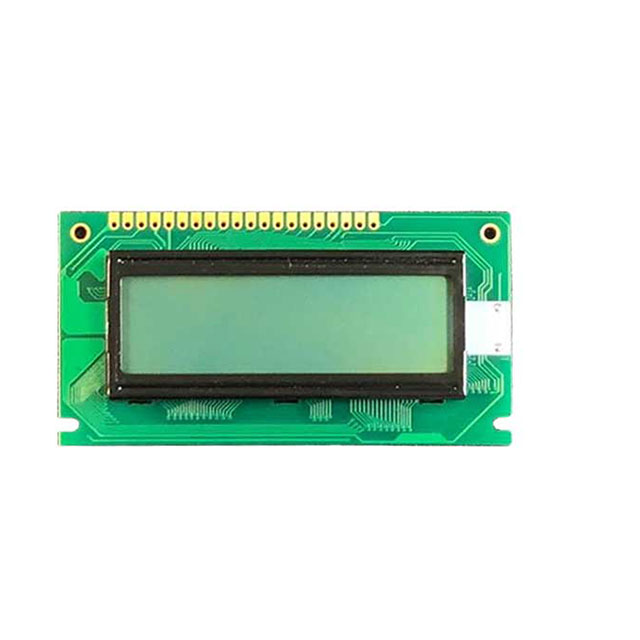

AGM1232G-FL-GBH
ActiveAZ Displays
122X32 GRAPHIC LCD TRANSFLECTIVE
AGM1232G-FL-GBH
ActiveAZ Displays
122X32 GRAPHIC LCD TRANSFLECTIVE
Description
General part information
AGM1232G-FL-GBH
Graphic LCD Display Module Transflective FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic 122 x 32
Technical Specifications
Parameters and characteristics for this part
| Specification | AGM1232G-FL-GBH |
|---|---|
| Backlight | LED |
| Controller Type | DOA, SED1520FOA |
| Display Mode | Transflective |
| Display Type | FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic |
| Dot Pitch Height | 0.49 mm |
| Dot Pitch Width | 0.44 mm |
| Dot Pixels (Horizontal) | 122 pixels |
| Dot Pixels (Vertical) | 32 pixels |
| Dot Size Height | 0.45 mm |
| Dot Size Width | 0.4 mm |
| Viewing Area Height | 18 mm |
| Viewing Area Width | 60 mm |
