83503 0021000

Active

Belden Inc.

CABLE 3COND 24AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 24AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83503 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.135 in
Jacket (Insulation) Diameter [diameter]	3.43 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Insulation	Cable Type	Shield Material	Jacket (Insulation) Material	Voltage	Number of Conductors	Length	Length	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Shield Coverage	Conductor Material	Ratings	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 83503 0021000	Fluorinated Ethylene-Propylene (FEP)	Multi-Conductor	Aluminum Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	300 V	3	1000 ft	304.8 m	Red	200 °C	-70 °C	Audio Control Instrumentation	32 AWG	7	0.432 mm	0.017 in	24 AWG	85 % 100 %	Copper Tinned	UL Style CMP	Braid Foil	0.135 in	3.43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.92

General part information

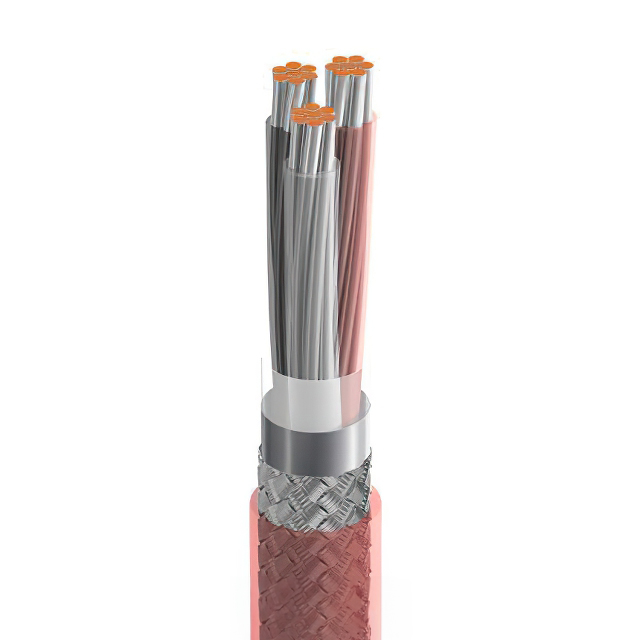

3 Conductor Multi-Conductor Cable Red 24 AWG Foil, Braid 1000.0' (304.8m)
