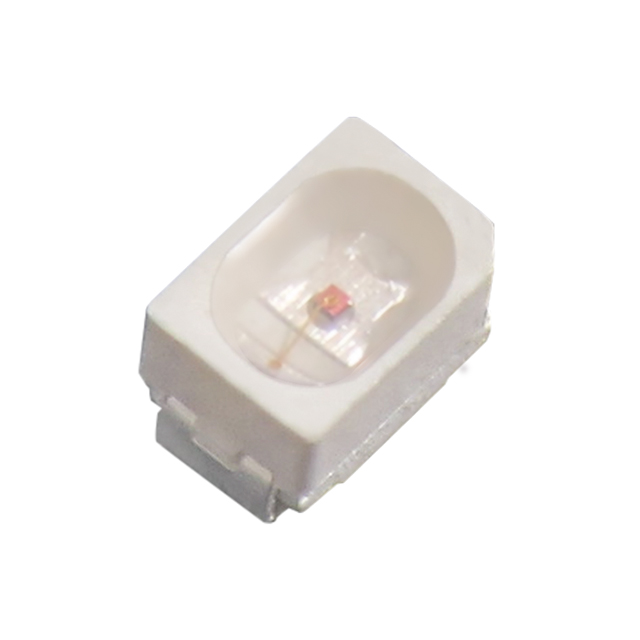

AA2214ZGSK
ActiveKingbright
LED GREEN CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AA2214ZGSK
ActiveKingbright
LED GREEN CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AA2214ZGSK |
|---|---|
| Color | Green |
| Configuration | Independent |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.4 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.65 mm |
| Lens Size [y] | 1.15 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 650 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 515 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.29 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 10 | $ 0.45 | |||
| 100 | $ 0.29 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 2000 | $ 0.21 | ||
| 6000 | $ 0.21 | |||
| 10000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
AA2214ZGSK
Green 525nm LED Indication - Discrete 3.3V 2-SMD, J-Lead
