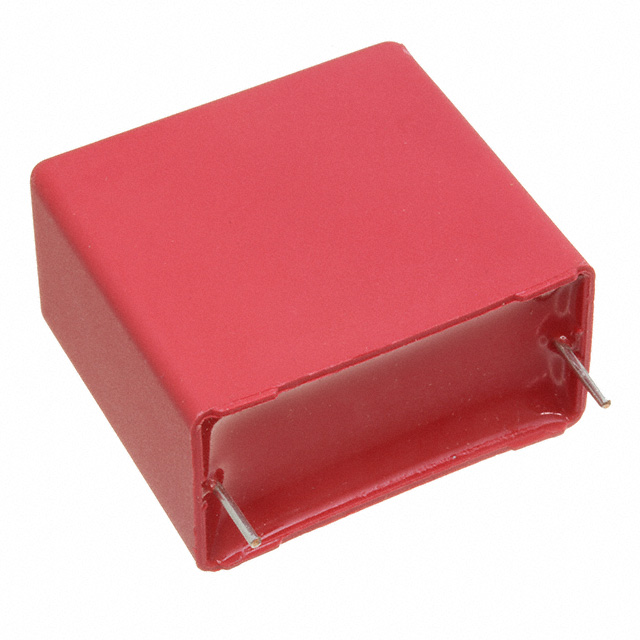

Specification	MKS4O141006G00KSSD

Applications	DC Filtering, DC Link, Automotive
Capacitance	1 µF
Dielectric Material	Metallized, Polyester, Polyethylene Terephthalate (PET)
Height - Seated (Max)	1.142 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension Length	1.24 in
Size / Dimension Width	0.669 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	400 Vpk
Voltage Rating - DC	1 kV

MKS4O1 Series

...

Part	Height - Seated (Max)	Ratings	Voltage Rating - DC	Mounting Type	Tolerance	Size / Dimension Length	Size / Dimension Width	Applications	Dielectric Material	Lead Spacing	Capacitance	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Voltage Rating - AC
WIMA MKS4O131004J00JF00	0.63 in	AEC-Q200	1 kV	Through Hole	5 %	0.709 in	0.354 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.591 in	0.1 µF	Radial	125 °C	-55 °C	PC Pins	400 Vpk
WIMA MKS4O116802D00MC00	0.374 in	AEC-Q200	1 kV	Through Hole	20 %	0.406 in	0.177 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.295 in	6800 pF	Radial	125 °C	-55 °C	PC Pins	400 Vpk
WIMA MKS4O131004J00KSC9	0.63 in	AEC-Q200	1 kV	Through Hole	10 %	0.709 in	0.354 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.591 in	0.1 µF	Radial	125 °C	-55 °C	PC Pins	400 Vpk
WIMA MKS4O116802D00MB00	0.374 in	AEC-Q200	1 kV	Through Hole	20 %	0.406 in	0.177 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.295 in	6800 pF	Radial	125 °C	-55 °C	PC Pins	400 Vpk
WIMA MKS4O112203C00KI00	0.354 in	AEC-Q200	1 kV	Through Hole	10 %	0.512 in	0.157 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.394 in	2200 pF	Radial	125 °C	-55 °C	PC Pins	400 Vpk
WIMA MKS4O114702C00JSSD	0.354 in	AEC-Q200	1 kV	Through Hole	5 %	0.394 in	0.157 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.295 in	4700 pF	Radial	125 °C	-55 °C	PC Pins	400 Vpk
WIMA MKS4O116802D00KSC9	0.374 in	AEC-Q200	1 kV	Through Hole	10 %	0.406 in	0.177 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.295 in	6800 pF	Radial	125 °C	-55 °C	PC Pins	400 Vpk
WIMA MKS4O116803C00JD00	0.354 in	AEC-Q200	1 kV	Through Hole	5 %	0.512 in	0.157 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.394 in	6800 pF	Radial	125 °C	-55 °C	PC Pins	400 Vpk
WIMA MKS4O123305B00KB00	0.591 in	AEC-Q200	1 kV	Through Hole	10 %	1.043 in	0.236 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.886 in	0.033 µF	Radial	125 °C	-55 °C	PC Pins	400 Vpk
WIMA MKS4O131005D00MH00	16.51 mm	AEC-Q200	1 kV	Through Hole	20 %	1.043 in	0.276 in	Automotive DC Filtering DC Link	Metallized Polyester Polyethylene Terephthalate (PET)	0.886 in	0.1 µF	Radial	125 °C	-55 °C	PC Pins	400 Vpk

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MKS4O141006G00KSSD | Datasheet
