2102772-2
ActiveTE Connectivity AMP Connectors

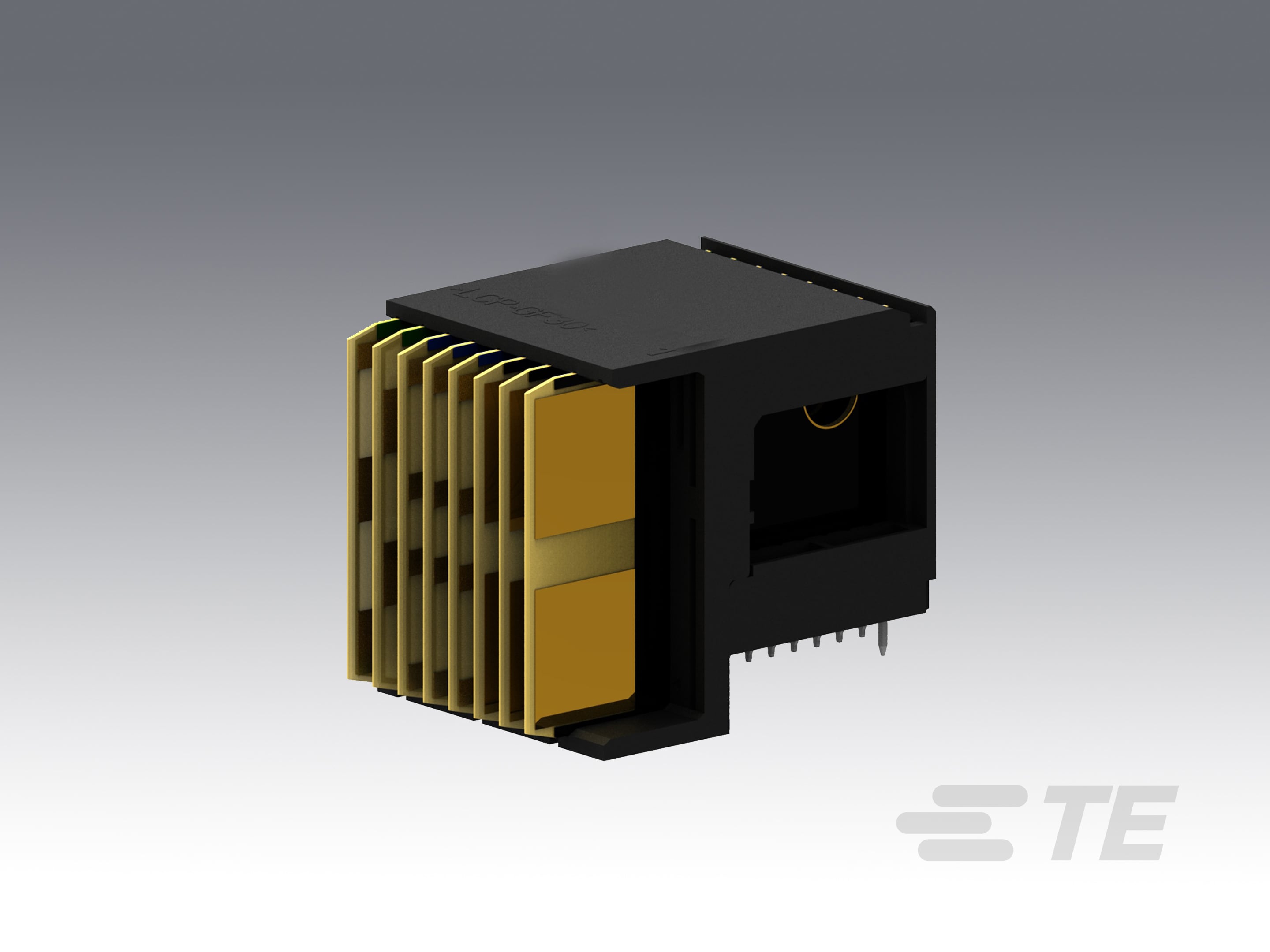

PLUG ASSY, R ANGLE, 7ROW, LEFT, MG, RUG
2102772-2
ActiveTE Connectivity AMP Connectors
PLUG ASSY, R ANGLE, 7ROW, LEFT, MG, RUG
Description
General part information
MULTIGIG RT 2-R Series
56 Position High Speed Backplane Connector, 7 Row, 8 Column, PCB Mount Header, Right Angle, Fully Shrouded, MULTIGIG RT 2-R
Technical Specifications
Parameters and characteristics for this part
| Specification | 2102772-2 |
|---|---|
| Color | Black |
| Connector Style | Left End, Half, VITA 46 |
| Connector Type | Plug, Male Blades |
| Connector Usage | Daughtercard |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Columns | 8 |
| Number of Positions | 56 |
| Number of Positions Loaded | All |
| Number of Rows | 7 |
| Pitch | 0.071 in |
| Power Contacts (Typical) | 56 |
| Termination | Solder |
