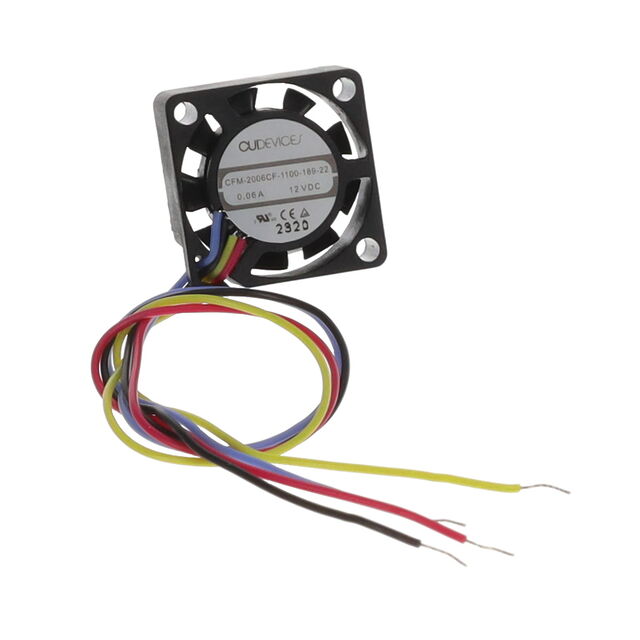

CFM-2006CF-1100-189-22
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 20 MM SQUARE, 6 MM
CFM-2006CF-1100-189-22
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 20 MM SQUARE, 6 MM
Description
General part information
CFM-2006CF-1100-189-22
Fan Tubeaxial 12VDC Square - 19.9mm L x 19.9mm H omniCOOL™ Magnetic Sleeve 0.600 CFM (0.017m³/min) 4 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM-2006CF-1100-189-22 |
|---|---|
| Air Flow | 0.6 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | omniCOOL™ Magnetic Sleeve |
| Current Rating | 50 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach), PWM Control |
| Lifetime | 40000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 18.9 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 600 mW |
| RPM | 10000 RPM |
| Size / Dimension Height | 19.9 mm |
| Size / Dimension Length | 19.9 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.06 in H2O |
| Termination | 4 Wire Leads |
| Termination Leads Count | 4 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 13.2 VDC |
| Voltage Range (Min) | 10.8 VDC |
| Width | 6.5 mm |
