282880-2
ActiveTE Connectivity AMP Connectors
CONN EUROSTYLE BLOCK M 2 POS 5MM SOLDER ST THRU-HOLE 13.5A/CONTACT BOX
282880-2
ActiveTE Connectivity AMP Connectors
CONN EUROSTYLE BLOCK M 2 POS 5MM SOLDER ST THRU-HOLE 13.5A/CONTACT BOX
Description
General part information
282880-2

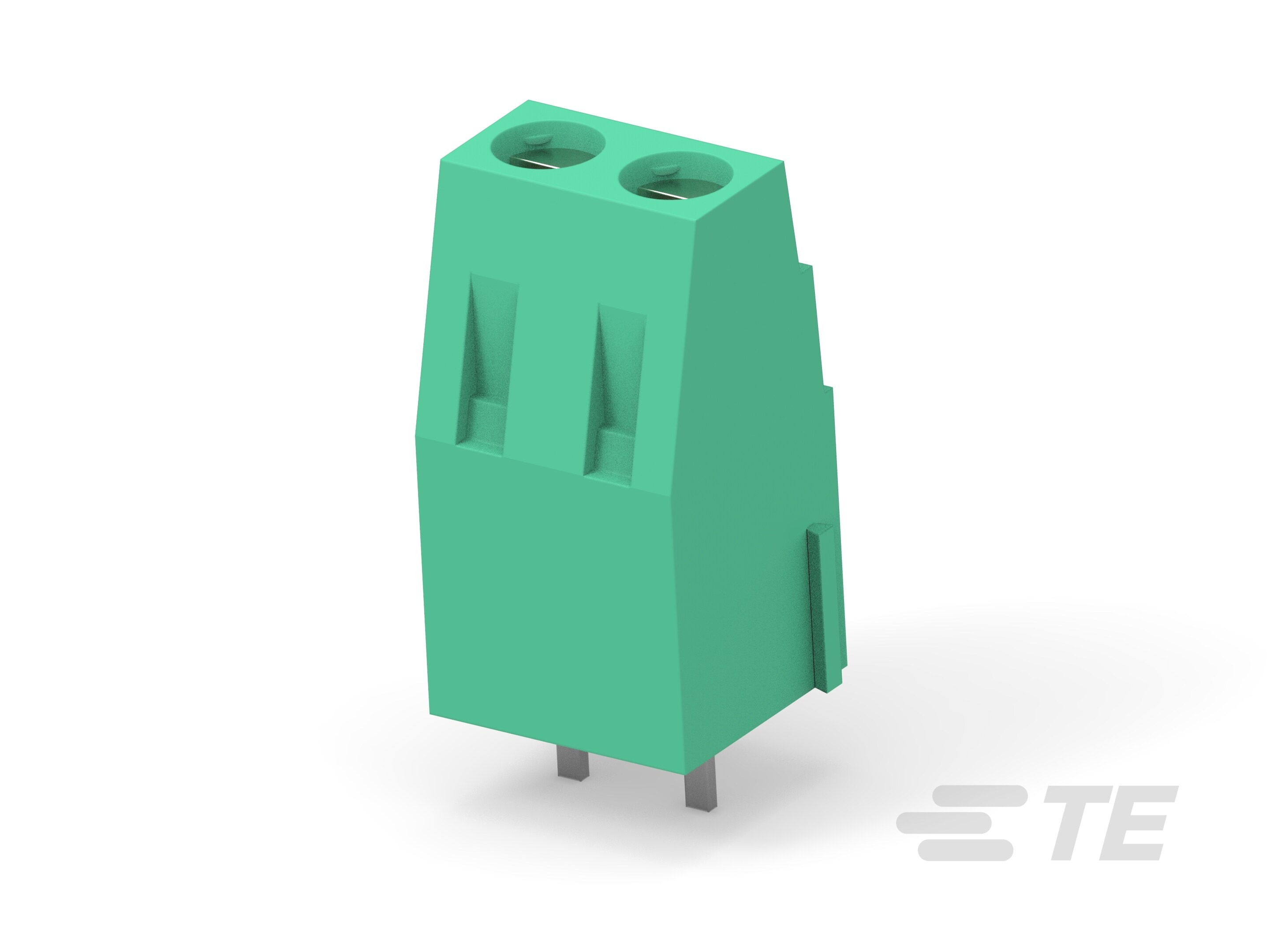

2 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 16 AWG, .05 – 1.4 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 282880-2 |
|---|---|
| Color | Green |
| Current | 13.5 A |
| Features | Interlocking (Side), Mid Wire Entry Level |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 2 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
