EZ-400-QNM-RA-X

Active

Amphenol Times Microwave Systems

QN-MALE (PLUG) CRIMP RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

EZ-400-QNM-RA-X

Active

Amphenol Times Microwave Systems

QN-MALE (PLUG) CRIMP RIGHT ANGLE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	13	$ 26.02

Description

General part information

EZ-400 Series

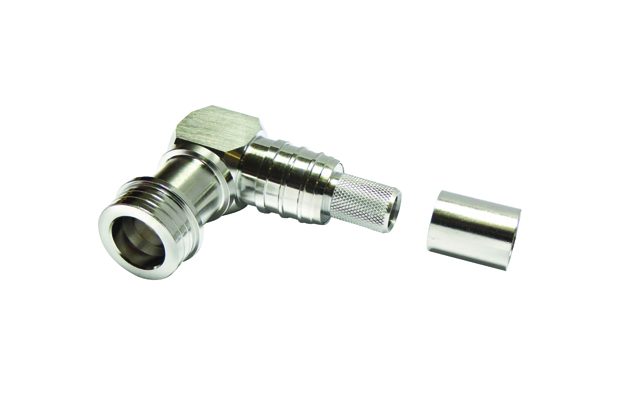

QN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Push On

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-400-QNM-RA-X	EZ-400 Series

Body Finish	Tin	White Bronze, Tin, Nickel
Body Material	Brass	Brass
Cable Group	LMR-400	LMR-400-75, LMR-400
Center Contact Material	Beryllium Copper	Beryllium Copper, Phosphor Bronze, Brass
Center Contact Plating	Gold	Gold
Connector Style	QN	N Type, QN, TNC, 4.3/10, BNC, F Type
Connector Style	-	4.1
Connector Style	-	9.5
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Push On	Crimp, Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On, Bayonet Lock
Frequency - Max [Max]	6000 MHz	2 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Insertion Loss	-	0.1 dB
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	-	2.5 - 1000 kV

EZ-400 Series

N-MALE (PLUG) CRIMP NON-SOLDER P

Part	Connector Type	Contact Termination	Connector Style	Mating Cycles	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Housing Color	Body Finish	Number of Ports	Cable Group	Mounting Type	Center Contact Material	Shield Termination	Dielectric Material	Center Contact Plating	Impedance	Fastening Type	Connector Style [Min]	Connector Style [Max]	Voltage Rating	Insertion Loss
Amphenol Times Microwave Systems EZ-400-NMK-X	Male Pin, Plug	Crimp	N Type
Amphenol Times Microwave Systems EZ-400-NMH-75-X	Male Pin, Plug	Push On	N Type	500	Brass	125 °C	-40 °C	3 GHz	Silver	White Bronze	1	LMR-400-75	Free Hanging (In-Line)	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	75 Ohms
Amphenol Times Microwave Systems EZ-400-QNF-X	Female Socket, Jack	Push On	QN		Brass	125 °C	-40 °C	6000 MHz	Silver	Tin	1	LMR-400	Free Hanging (In-Line)	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Snap-On
Amphenol Times Microwave Systems EZ-400-QNM-RA-X	Male Pin, Plug	Push On	QN		Brass	125 °C	-40 °C	6000 MHz	Silver	Tin	1	LMR-400	Free Hanging (In-Line), Right Angle	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Snap-On
Amphenol Times Microwave Systems EZ-400-4195M-X	Male Pin, Plug	Push On				85 °C	-40 °C	6000 MHz	Silver	White Bronze	1	LMR-400	Free Hanging (In-Line)		Crimp		Gold	50 Ohms		4.1	9.5
Amphenol Times Microwave Systems EZ-400-TF-PL-X	Female Socket, Jack	Push On	TNC	500	Brass	125 °C	-40 °C	6000 MHz	Silver	White Bronze	1	LMR-400	Free Hanging (In-Line)	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms				2.5 kV
Amphenol Times Microwave Systems EZ-400-4310M-X	Male Pin, Plug	Push On	4.3/10		Brass	125 °C	-40 °C	6000 MHz	Silver	Tin	1	LMR-400	Free Hanging (In-Line)	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms
Amphenol Times Microwave Systems EZ-400-BM-RA-X	Male Pin, Plug	Push On	BNC		Brass	155 °C	-55 °C	4 GHz	Silver	White Bronze	1	LMR-400	Free Hanging (In-Line), Right Angle	Beryllium Copper	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Bayonet Lock				0.1 dB
Amphenol Times Microwave Systems EZ-400-TF-X	Female Socket, Jack	Push On	TNC	500	Brass	125 °C	-55 °C	6000 MHz	Silver	White Bronze	1	LMR-400	Free Hanging (In-Line)	Phosphor Bronze	Crimp	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms				750 VDC
Amphenol Times Microwave Systems EZ-400-FMH-75	Male Pin, Plug	Push On	F Type		Brass	85 °C	-40 °C	2 GHz	Silver	Nickel	1	LMR-400-75	Free Hanging (In-Line)	Brass	Crimp	Polytetrafluoroethylene (PTFE)	Gold	75 Ohms				1000 VDC
