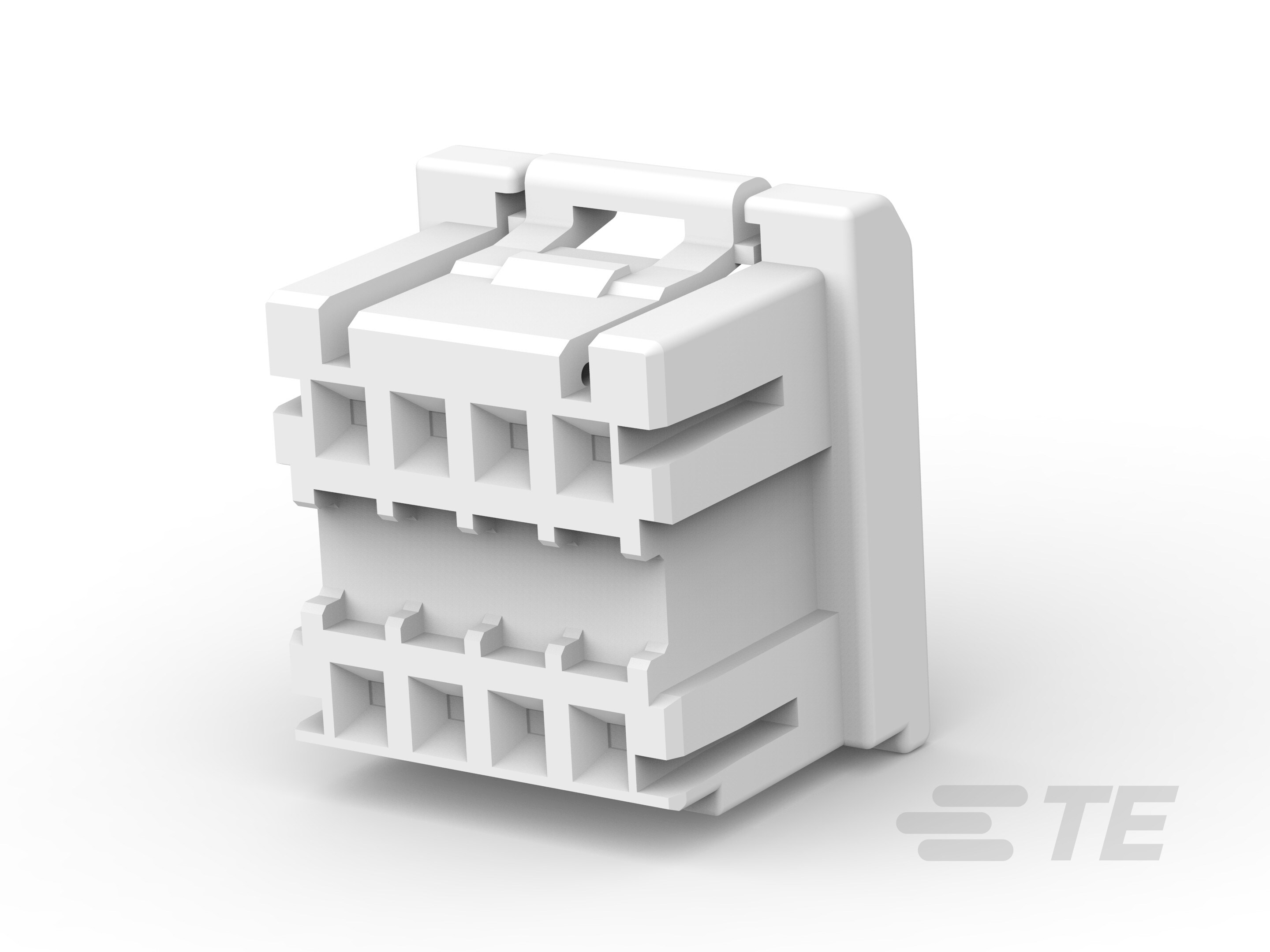

Specification	1981970-1

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch	0.098 in
Row Spacing	0.299 in

GRACE INERTIA 2.5 Series

...

Part	Insulation Color	Insulation Material	Termination	Fastening Type	Number of Positions Loaded	Voltage Rating	Voltage Rating (Type)	Pitch - Mating	Shrouding	Number of Rows	Material Flammability Rating	Contact Length - Post	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Insulation Height	Connector Type	Contact Shape	Contact Finish - Mating	Contact Material	Contact Finish - Post	Contact Type	Style
TE Connectivity AMP Connectors 1747067-3	Natural	Glass Filled Nylon 6/6 Polyamide (PA66)	Kinked Pin Solder	Detent Lock	All	50 V	DC	0.098 in	Shrouded - 4 Wall	1	UL94 V-0	0.118 in	3	-40 °C	105 °C	Through Hole	0.445 in	Header	Rectangular	Gold	Brass	Tin	Tab	Board Cable/Wire
