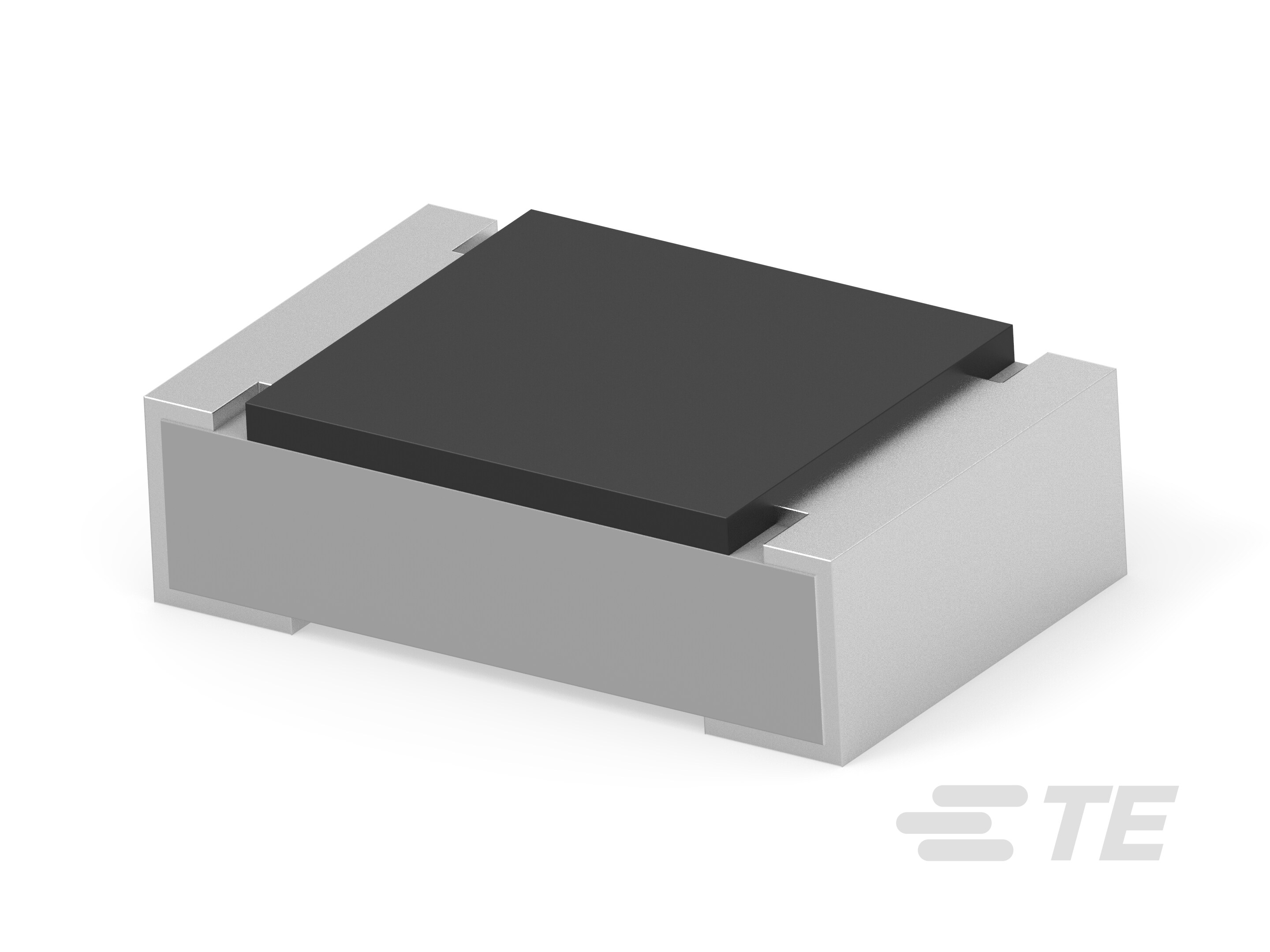

RLC73K 2A R806 1% 5K RL-2176570-6

RLC73K2A1R0FTD

Active
TE Connectivity AMP Connectors

SMD CHIP RESISTOR, CURRENT SENSE, 1 OHM, ± 1%, 125 MW, 0805 [2012 METRIC], THICK FILM, POWER

Find alt
RLC73K 2A R806 1% 5K RL-2176570-6

RLC73K2A1R0FTD

Active
TE Connectivity AMP Connectors

SMD CHIP RESISTOR, CURRENT SENSE, 1 OHM, ± 1%, 125 MW, 0805 [2012 METRIC], THICK FILM, POWER

Find alt

Description

General part information

CGS RLC73 Series

1 ohm, Surface Mount Current Sensing Resistor, Thick Film, 0805, .125 W, 1 %, ±200 ppm/°C, Solder, 2 Terminations, .55 mm [.022 in] Height, CGS RLC73

Technical Specifications

Parameters and characteristics for this part

SpecificationRLC73K2A1R0FTD
CompositionThick Film
FeaturesCurrent Sense
Height - Seated (Max)0.026 in
Number of Terminations2
Operating Temperature (Max)155 °C
Operating Temperature (Min)-55 °C
Package / Case0805 (2012 Metric)
Package Name0805
Power (Watts)0.125 W
Power (Watts) Options1/8W
Resistance1 Ohm
Size / Dimension Length0.079 in
Size / Dimension Width0.049 in
Temperature Coefficient200 ppm/°C
Tolerance1 %
