Description
General part information
UPT2G331MRD

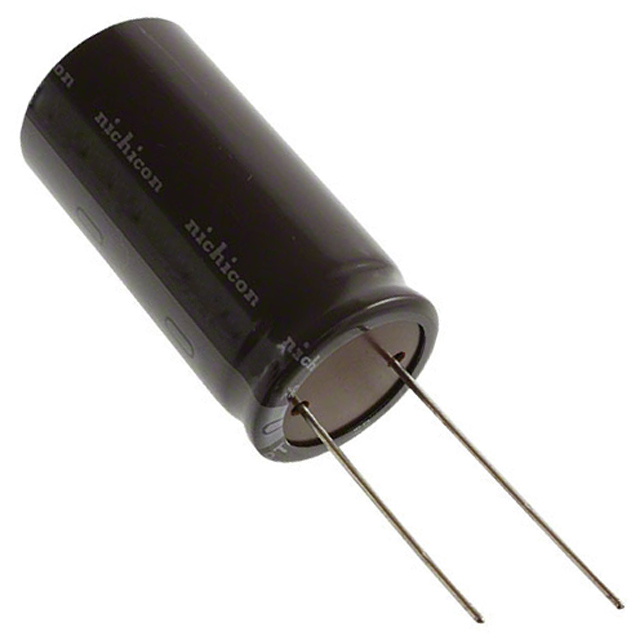

330 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPT2G331MRD |
|---|---|
| Applications | General Purpose |
| Capacitance | 330 µF |
| Height - Seated (Max) | 2.047 in |
| Lead Spacing | 0.492 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Ripple Current | 1.4 A, 2.24 A |
| Size / Dimension Diameter | 0.984 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
