KG10.6101.151

Active

SCHURTER Inc.

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +2

KG10.6101.151

Active

SCHURTER Inc.

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KG10.6101.151	KG10.6101 Series

Accomodates a Fuse	True	True
Approval Agency	UL, ENEC, CSA	UL, ENEC, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Voltage Selector	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate	Drawer Sold Separate
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange	Panel Mount, Snap-In, Flange
Panel Cutout Dimensions [x]	27.5 mm	27.5 mm
Panel Cutout Dimensions [y]	80 mm	80 mm
Panel Thickness	-	2 mm
Panel Thickness	-	0.079 in
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Panel Thickness	-	2.5 mm
Panel Thickness	-	0.098 in
Switch Features	Switch On-Off	Switch On-Off
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

KG10.6101 Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Current Rating - Appliance Inlet	Material Flammability Rating	Approval Agency	Voltage Rating - Appliance Inlet	Termination	Termination	Ingress Protection	Features	Fuse Holder, Drawer	Switch Features	Filter Type	Connector Style	Mounting Type	Connector Type	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [custom]	Panel Thickness [custom]	Panel Thickness [x]	Panel Thickness [x]
SCHURTER Inc. KG10.6101.107	10 A	UL94 V-0	CSA, ENEC, UL	250 VAC	0.189 ", 4.8 mm	Quick Connect	IP40	Voltage Selector	Drawer Sold Separate	Switch On-Off	Unfiltered - Commercial	IEC 320-C14	Panel Mount, Snap-In	Receptacle, Male Blades - Module	2 mm	0.079 in	27.5 mm	80 mm
SCHURTER Inc. KG10.6101.105	10 A	UL94 V-0	CSA, ENEC, UL	250 VAC	0.189 ", 4.8 mm	Quick Connect	IP40	Voltage Selector	Drawer Sold Separate	Switch On-Off	Unfiltered - Commercial	IEC 320-C14	Panel Mount, Snap-In	Receptacle, Male Blades - Module			27.5 mm	80 mm	0.059 in	1.5 mm
SCHURTER Inc. KG10.6101.109	10 A	UL94 V-0	CSA, ENEC, UL	250 VAC	0.189 ", 4.8 mm	Quick Connect	IP40	Voltage Selector	Drawer Sold Separate	Switch On-Off	Unfiltered - Commercial	IEC 320-C14	Panel Mount, Snap-In	Receptacle, Male Blades - Module			27.5 mm	80 mm			2.5 mm	0.098 in
SCHURTER Inc. KG10.6101.151	10 A	UL94 V-0	CSA, ENEC, UL	250 VAC	0.189 ", 4.8 mm	Quick Connect	IP40	Voltage Selector	Drawer Sold Separate	Switch On-Off	Unfiltered - Commercial	IEC 320-C14	Flange, Panel Mount	Receptacle, Male Blades - Module			27.5 mm	80 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.37
		50	$ 25.89
		100	$ 21.70

Description

General part information

KG10.6101 Series

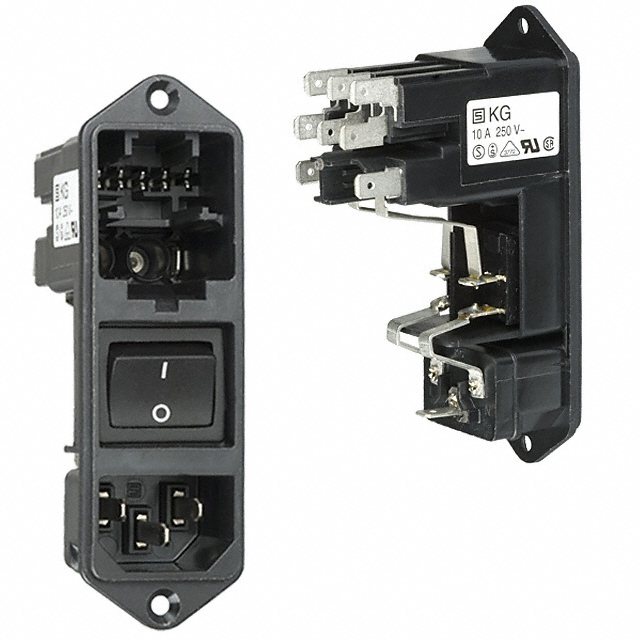

The KG10.6101.151 is a screw panel mounting Power Entry Module with quick-connect terminals and UL94V-0 black thermoplastic housing. The IEC appliance inlet module comes with 2-pole fuse holder and 2-pole line rocker switch. The fuse drawer meets requirements of medical standard IEC/EN 60601-1. The fuse drawer can only be opened with the aid of a tool. The fuse holder is accessible from the equipment front.
