B57550G1303H000
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 30KOHM 3973K BEAD
B57550G1303H000
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 30KOHM 3973K BEAD
Description
General part information
B57550G1303H000

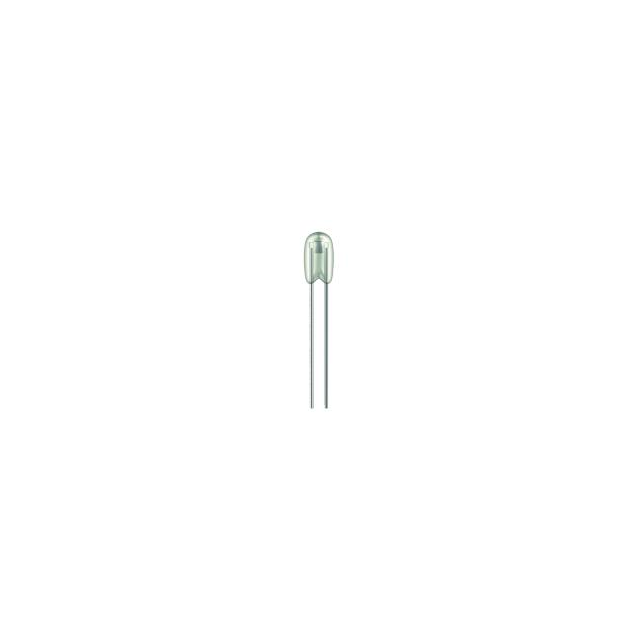

NTC Thermistor 30k Bead, Glass
Technical Specifications
Parameters and characteristics for this part
| Specification | B57550G1303H000 |
|---|---|
| B Value (25/85) | 3973 K |
| Beta (B25/100) | 3988 K |
| Grade | Automotive |
| Length - Lead Wire | 2.8 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 300 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bead, Glass |
| Power - Max | 32 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 30 kOhm |
| Resistance Tolerance (%) | 3 % |
