AP522304
ActiveKYOCERA AVX

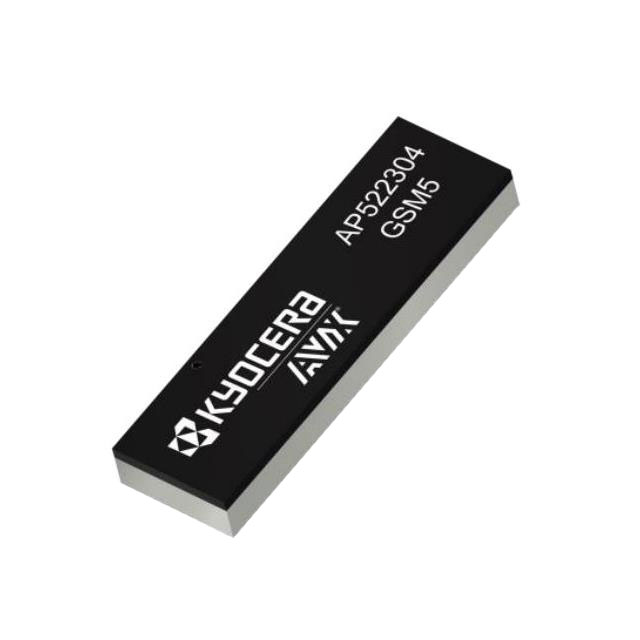

RF ANTENNA, 1.71 TO 2.17GHZ, FR4 EMBEDDED CELLULAR, 0.7DBI, 2W, SMD
AP522304
ActiveKYOCERA AVX
RF ANTENNA, 1.71 TO 2.17GHZ, FR4 EMBEDDED CELLULAR, 0.7DBI, 2W, SMD
Description
General part information
AP522304
RF ANTENNA ISM, LoRaWAN, LPWA, LTE, NB-IoT, Sigfox, Wi-Fi Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AP522304 |
|---|---|
| Antenna Type | Chip |
| Applications | Sigfox, LPWA, ISM, LTE, Wi-Fi, LoRaWAN, NB-IoT |
| Frequency (Band) | 1.94 GHz |
| Frequency (Center) | 892 MHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 2.17 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 0 dBi, 0.7 dBi |
| Height (Max) | 0.13 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Power - Max | 2 VA |
| RF Family/Standard | Cellular, WiFi, General ISM |
| Termination | Solder |
| VSWR | 2.7, 2.5 |
| VSWR Maximum | 2.7 |
| VSWR Minimum | 2.5 |
