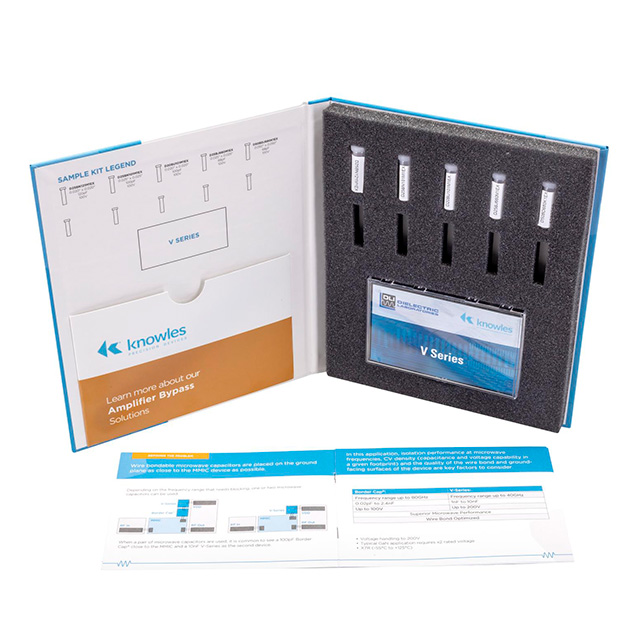

AMPLIFIER BYPASS SAMPLE KIT
ActiveKnowles Syfer
AMPLIFIER BYPASS SAMPLE KIT
AMPLIFIER BYPASS SAMPLE KIT
ActiveKnowles Syfer
AMPLIFIER BYPASS SAMPLE KIT
Description
General part information
AMPLIFIER BYPASS SAMPLE KIT
Ceramic Capacitor Kit 0.02pF ~ 10000pF 100 ~ 200V Surface Mount, SLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | AMPLIFIER BYPASS SAMPLE KIT |
|---|---|
| Applications | High Frequency, Microwave, General Purpose, RF |
| Capacitance Range (Max) | 10000 pF |
| Capacitance Range (Min) | 0.02 pF |
| Features | Epoxy Mountable, Single Layer, Bonding Mountable |
| Kit Type | Ceramic |
| Mounting Type | SLCC, Surface Mount |
| Packages Included | Non-Standard SMD |
| Tolerance | 10 %, 20 % |
| Tolerance | ±10%, ±20% |
| Voltage - Rated (Max) | 200 V |
| Voltage - Rated (Min) | 100 V |
