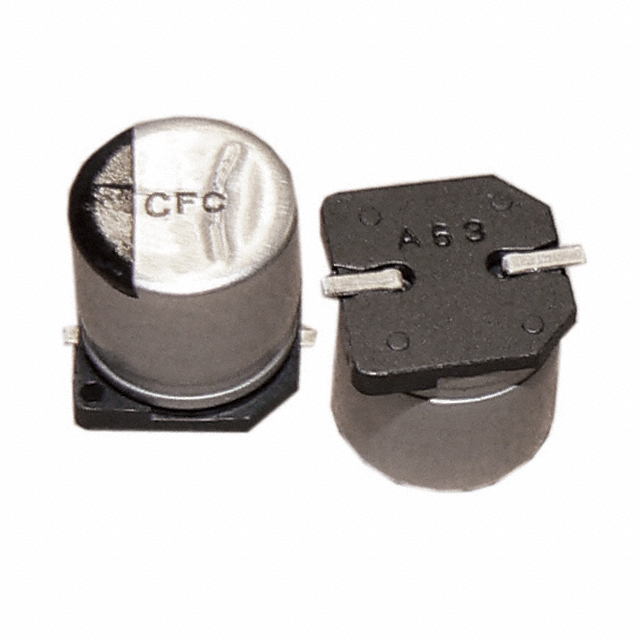

Specification	AFC226M16C12T

Applications	Bypass, Decoupling, Automotive
Capacitance	22 µF
ESR (Equivalent Series Resistance)	12.1 Ohm
Height - Seated (Max)	0.217 in
Impedance	1.8 Ohms
Lifetime	1000 Hrs
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial, Can - SMD
Polarization	Polar
Ratings	AEC-Q200
Ripple Current	71.25 mA, 95 mA
Size / Dimension Diameter	0.197 in
Surface Mount Land Length	0.209 in
Surface Mount Land Width	0.256 in
Tolerance	20 %
Voltage - Rated	16 V
