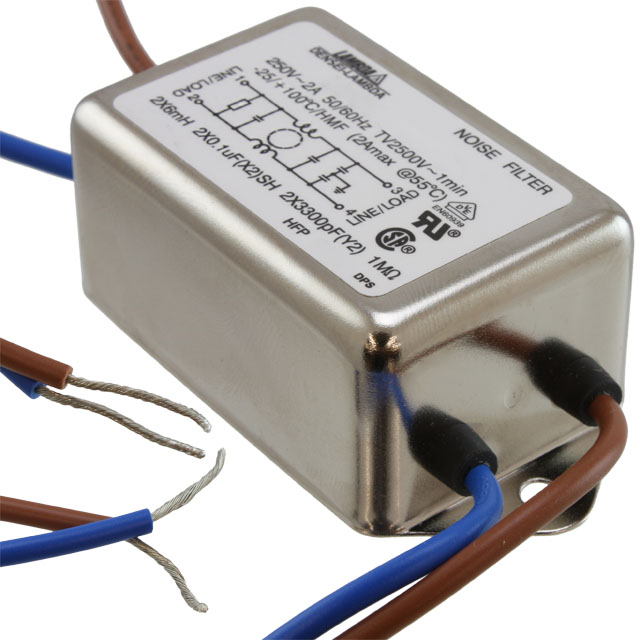

MAW-1202-22
ObsoleteTDK Corporation
LINE FILTER 250VDC/VAC 2A CHAS
MAW-1202-22
ObsoleteTDK Corporation
LINE FILTER 250VDC/VAC 2A CHAS
Description
General part information
MAW-1202-22
Single Phase EMC/EMI Line Filter 2 A 250V 250V Single Stage Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | MAW-1202-22 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UL |
| Configuration | Single Stage |
| Current | 2 A |
| Filter Type | Single Phase |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Wire Leads |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 250 V |
