CA-085SCSMSM024
ActivePasternack
CA.085 S-R STD COP SM/SM 24""
CA-085SCSMSM024
ActivePasternack
CA.085 S-R STD COP SM/SM 24""
Description
General part information
CA-085SCSMSM024

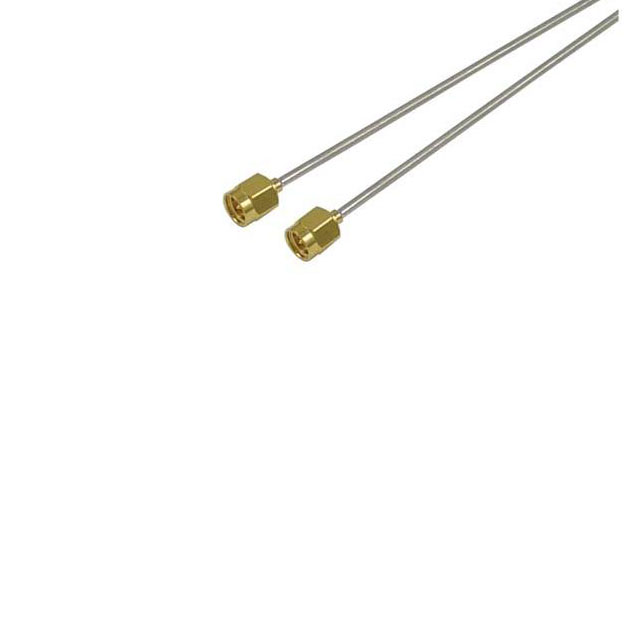

Cable Assembly Coaxial SMA to SMA 0.085" Semi-Rigid Cable 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-085SCSMSM024 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.085 " |
| Cable Impedance | 50 Ohms |
| Cable Type | Semi, Rigid Cable, Semi-Rigid Cable |
| Cable Type Size | 0.085 ", 0.085 |
| Color | Silver |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
