2MMHM HDR ASY,12R SEL/LD 144P-1645562-1

1645562-1

Active
TE Connectivity AMP Connectors

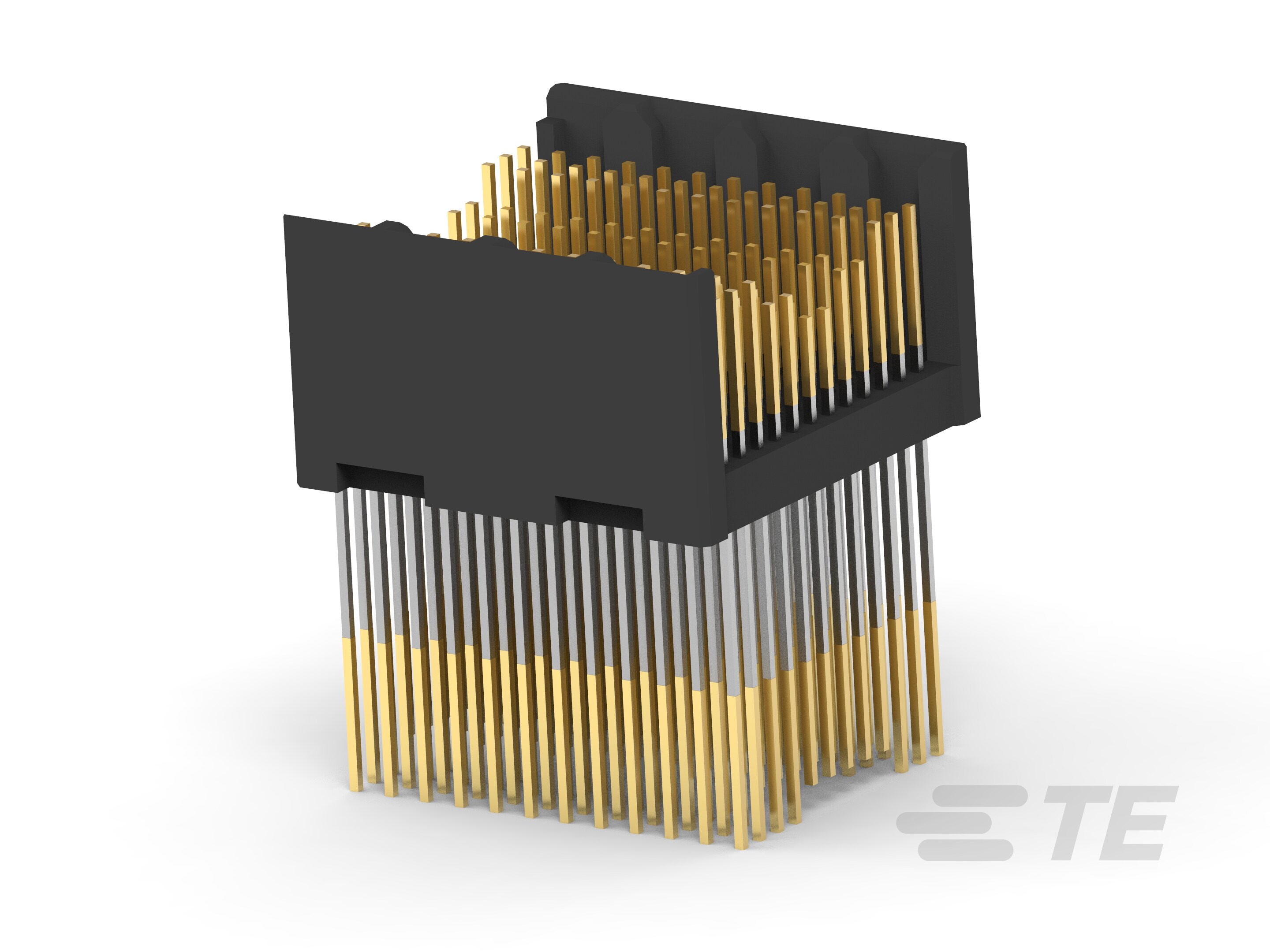

CONN HEADER 144POS 2MM PRESS-FIT

Find alt
2MMHM HDR ASY,12R SEL/LD 144P-1645562-1

1645562-1

Active
TE Connectivity AMP Connectors

CONN HEADER 144POS 2MM PRESS-FIT

Find alt

Description

General part information

Z-PACK 2mm HM Series

Hard Metric Backplane PCB Mount Header, 1 Gb/s, 12 Column, 12 Row, Traditional Backplane, 144 Position, 2 mm [.079 in] Centerline, Z-PACK 2mm HM

Technical Specifications

Parameters and characteristics for this part

Specification1645562-1
Connector StyleB 12
Connector TypeHeader, Male Pins
Contact FinishGold
Current Rating1.5 A
FeaturesAlignment Strip
Mounting TypeThrough Hole
Number of Positions144
Number of Positions LoadedAll
Number of Rows12
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch0.079 in
TerminationPress-Fit
Voltage Rating500 V
