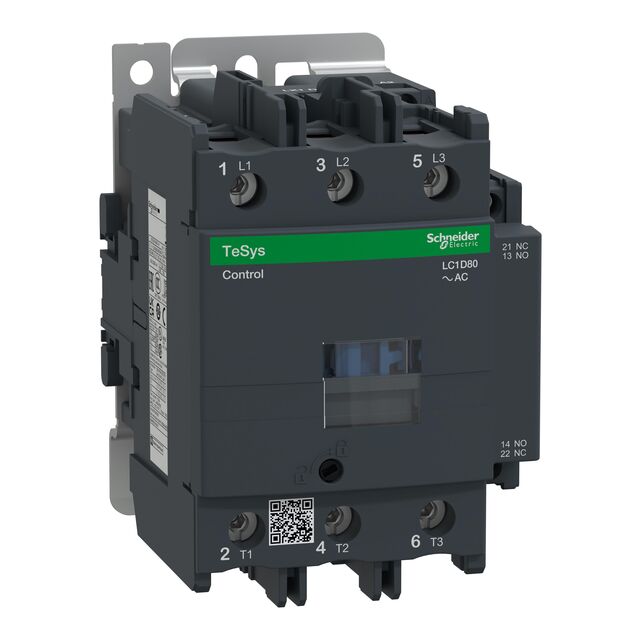

LC1D80P7
ActiveSCHNEIDER ELECTRIC
CONTACTOR TESYS DECA 3P 80A 230V
LC1D80P7
ActiveSCHNEIDER ELECTRIC
CONTACTOR TESYS DECA 3P 80A 230V
Description
General part information
LC1D80P7
CONTACTOR TESYS DECA 3P 80A 230V
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D80P7 |
|---|---|
| Coil Voltage | 230 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 80 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 195.5 VDC |
| Must Release Voltage | 69 VAC |
| Operate Time | 35 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
