LFB360230-300
ActiveLaird Technologies EMI

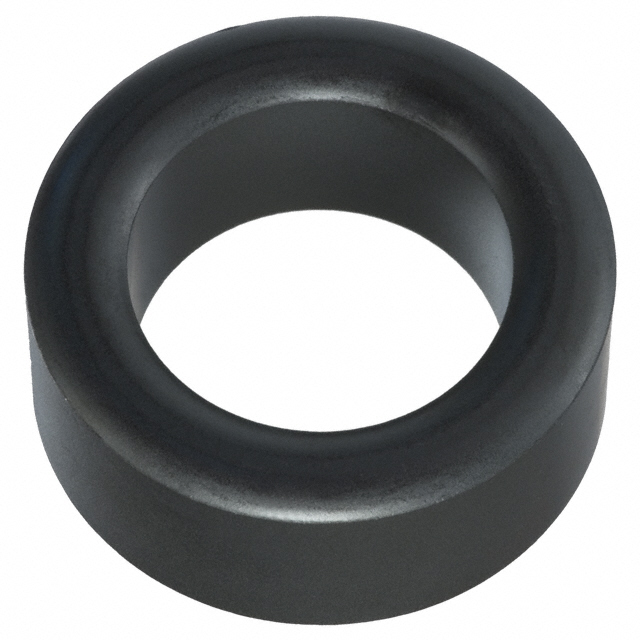

FERRITE CORE 19 OHM SOLID 23MM
LFB360230-300
ActiveLaird Technologies EMI
FERRITE CORE 19 OHM SOLID 23MM
Description
General part information
LFB360230-300
Solid Free Hanging Ferrite Core 19Ohm @ 5MHz ID 0.906" Dia (23.00mm) OD 1.417" Dia (36.00mm) Length 0.591" (15.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LFB360230-300 |
|---|---|
| Design | Solid |
| Impedance | 19 Ohm |
| Inner Dimension (Diameter) | 0.906 in |
| Length | 0.591 in |
| Material | LF |
| Mounting Type | Free Hanging |
| Outer Dimension (Diameter) | 1.417 in |
| Type | Round |
