LCANGPS1005
ActivePasternack

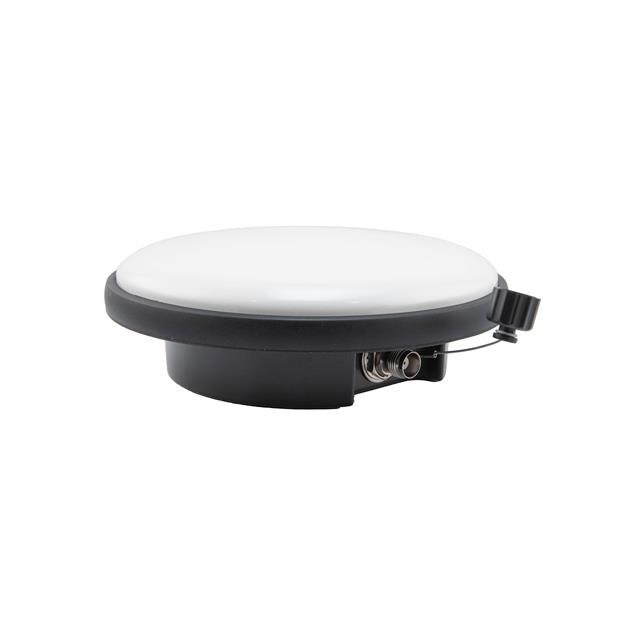

RUGGEDIZED GPS ACTIVE ANTENNA MU
LCANGPS1005
ActivePasternack
RUGGEDIZED GPS ACTIVE ANTENNA MU
Description
General part information
LCANGPS1005
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS Module TNC Female Threaded
Technical Specifications
Parameters and characteristics for this part
| Specification | LCANGPS1005 |
|---|---|
| Antenna Type | Module |
| Applications | GLONASS, SBAS, QZSS, GNSS, GPS, BEIDOU, Galileo, IRNSS |
| Features | 7.62m, Cable, 305mm, 3.048m, 1.524m, LNA |
| Frequency (Center/Band) | 1.389 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.615 GHz |
| Frequency Range (Min) | 1.164 GHz |
| Gain | 47.5 dBi |
| Height (Max) | 1.1 in |
| Ingress Protection | IP69K |
| Mounting Type | Threaded |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | TNC Female |
| VSWR | 2 |
