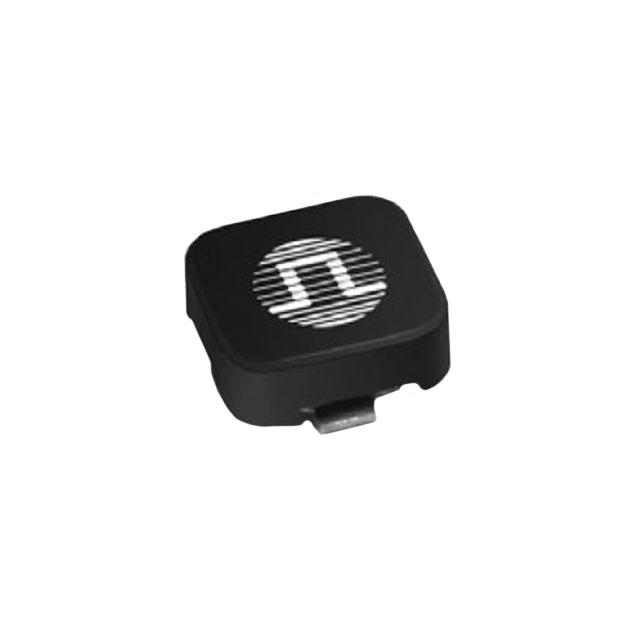

PF0601.103NLT
ActivePulse Electronics
FIXED IND 10UH 1.1A 135 MOHM SMD
PF0601.103NLT
ActivePulse Electronics
FIXED IND 10UH 1.1A 135 MOHM SMD
Description
General part information
PF0601.103NLT
10 µH Shielded Wirewound Inductor 1.1 A 135mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PF0601.103NLT |
|---|---|
| Current - Saturation (Isat) | 1.1 A |
| Current Rating | 1.1 A |
| DC Resistance (DCR) (Max) | 135 mOhm |
| Frequency - Self Resonant | 31 MHz |
| Height - Seated (Max) | 0.118 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.272 in |
| Size / Dimension Width | 0.256 in |
| Tolerance | 20 % |
| Type | Wirewound |
