500D108M063GK2A
ActiveVishay Dale
CAPACITOR,1000UF,63VDC,20-% TOL,20+% TOL
500D108M063GK2A
ActiveVishay Dale
CAPACITOR,1000UF,63VDC,20-% TOL,20+% TOL
Description
General part information
500D108M063GK2A

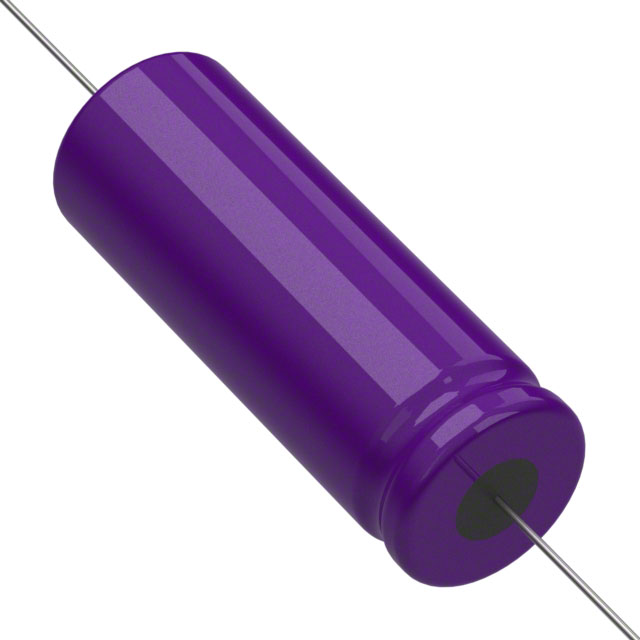

1000 µF 63 V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 500D108M063GK2A |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Size / Dimension Diameter | 0.63 in |
| Size / Dimension Length | 1.752 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
