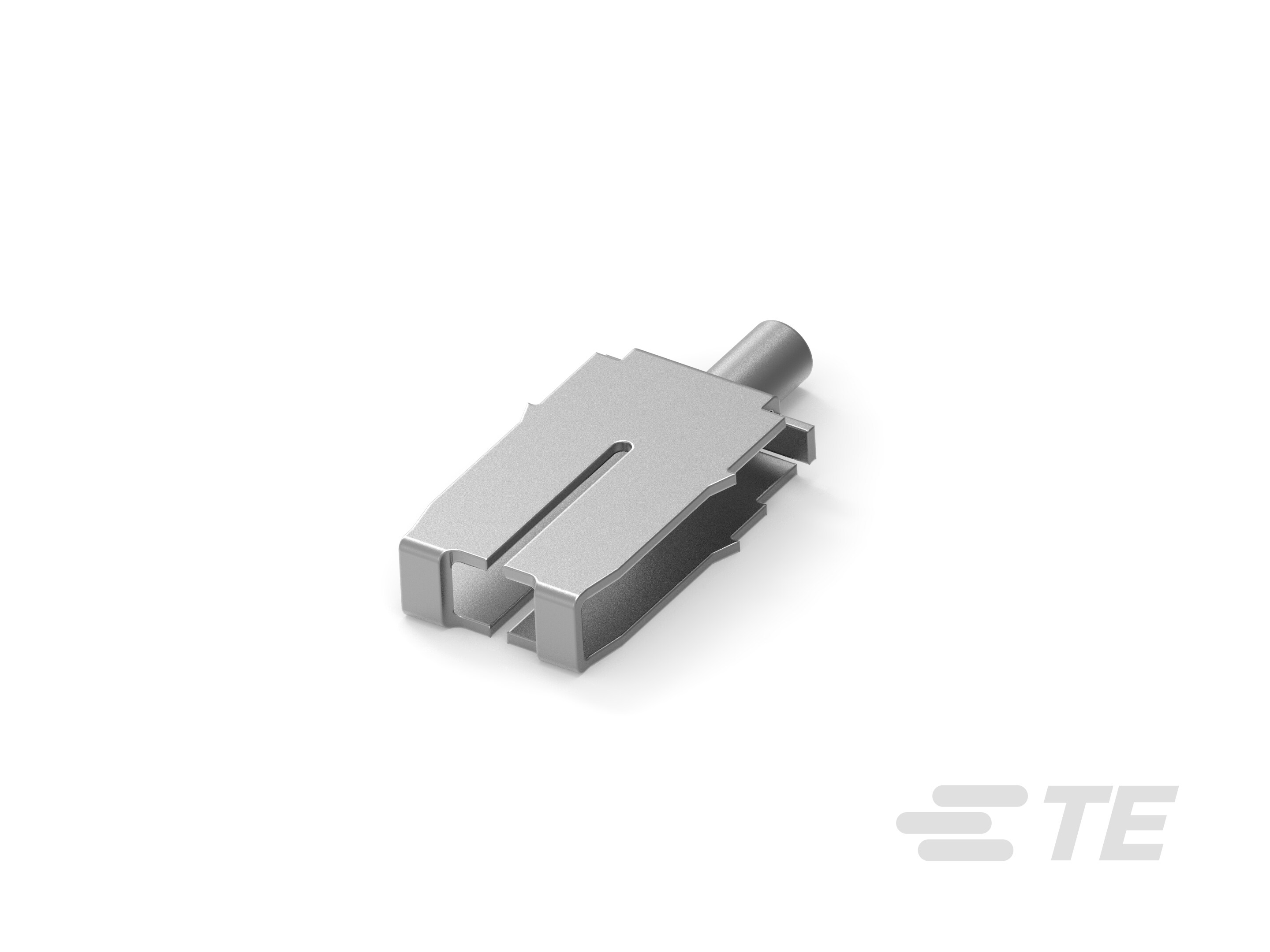

PIN,090 DIAM,500 SERIES,MAG-MA-1742404-1

1742404-1

Active
TE Connectivity AMP Connectors

TERMINALS PIN,090 DIAM, 500 SERIES,MAG-MA

Find alt
PIN,090 DIAM,500 SERIES,MAG-MA-1742404-1

1742404-1

Active
TE Connectivity AMP Connectors

TERMINALS PIN,090 DIAM, 500 SERIES,MAG-MA

Find alt

Description

General part information

1742404-1

Pin, .86 – 1.15 mm Magnet Wire, 19.5 – 17 AWG Magnet Wire, Insulation Displacement (IDC), Tin Plating, MAG-MATE, Magnet Wire Terminals

Technical Specifications

Parameters and characteristics for this part

Specification1742404-1
Size4
Style500
Terminal TypeBox IDC
TerminationPin
Wire Gauge (AWG) (Max)20.5 AWG
Wire Gauge (AWG) (Min)17 AWG
