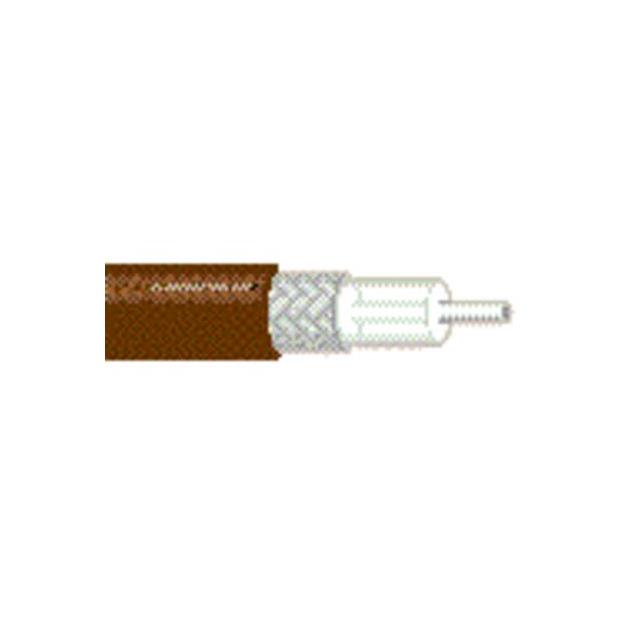

84303 0011000

Active

Belden Inc.

RG303 COAX

Search across all available documentation for this part.

Active

Belden Inc.

RG303 COAX

Technical Specifications

Parameters and characteristics for this part

Specification	84303 0011000

Cable Group	RG-303
Cable Type	Coaxial
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand	Solid
Dielectric Diameter [diameter]	2.95 mm
Dielectric Diameter [diameter]	0.116 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.17 in
Jacket (Insulation) Diameter [diameter]	4.32 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Brown
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	95 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
VoP, Velocity of Propagation	70
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Dielectric Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Length	Length	VoP, Velocity of Propagation	Cable Group	Shield Material	Jacket Color	Conductor Strand	Shield Type	Wire Gauge	Conductor Material
Belden Inc. 84303 0011000	Fluorinated Ethylene-Propylene (FEP)	Polytetrafluoroethylene (PTFE)	2.95 mm	0.116 in	Coaxial	95 %	0.17 in	4.32 mm	200 °C	-70 °C	50 Ohms	304.8 m	1000 ft	70	RG-303	Copper Silver Coated	Brown	Solid	Braid	18 AWG	Copper Covered Silver Coated Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 7.74

General part information

Coaxial Cable 18 AWG RG-303 1000.0' (304.80m) 50 Ohms
