Optoelectronics

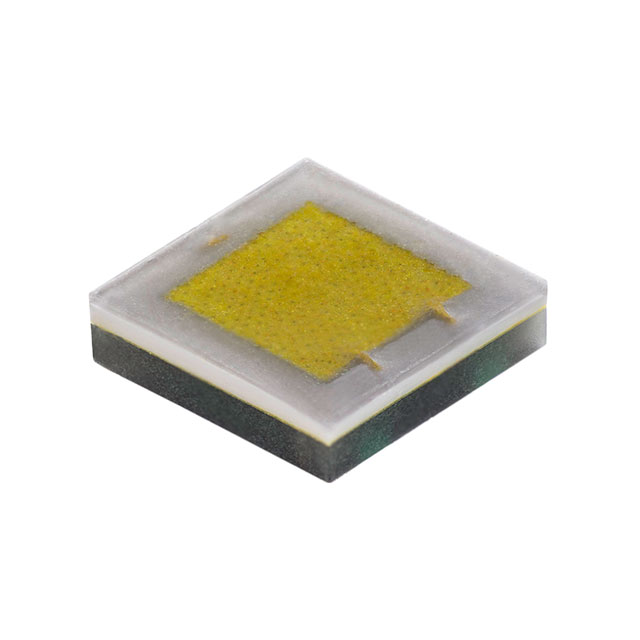

XHP35A-H0-0000-0D0PB450E

Obsolete

CreeLED, Inc.

LED XLAMP COOL WHITE 5000K

Optoelectronics

XHP35A-H0-0000-0D0PB450E

Obsolete

CreeLED, Inc.

LED XLAMP COOL WHITE 5000K

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP35A-H0-0000-0D0PB450E

CCT (K)	5000 K
CCT Description	5-Step MacAdam Ellipse
Color	Cool, White
CRI (Color Rendering Index)	85
Current - Max	1.05 A
Current - Test	350 mA
Flux (Maximum)	440 lm
Flux (Minimum)	410 lm
Flux (Typical)	425 lm
Height - Seated (Max)	0.115 in
Lumens/Watt	107 lm/W
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Size / Dimension Length	0.136 in
Size / Dimension Width	0.136 in
Thermal Resistance of Package	1.8 °C/W
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	11.3 V

XHP35A Series

...

Part	Thermal Resistance of Package	Color	Package / Case	CCT (K)	CCT Description	Mounting Type	Lumens/Watt	Current - Test	Height - Seated (Max)	Size / Dimension Length	Size / Dimension Width	Viewing Angle	Flux (Maximum)	Flux (Typical)	Flux (Minimum)	Current - Max	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index) (Typ)
CreeLED, Inc. XHP35A-H0-0000-0D0PA227G	1.8 °C/W	Warm White	1414 (3535 Metric)	2700 K	3-Step MacAdam Ellipse	Surface Mount	87 lm/W	350 mA	0.115 in	0.136 in	0.136 in	115 °	355 lm	343 lm	330 lm	1.05 A	85	11.3 V
CreeLED, Inc. XHP35A-H0-0000-0D0PB20DT	1.8 °C/W	Cool White	1414 (3535 Metric)	7000 K		Surface Mount	100 lm/W	350 mA	0.115 in	0.136 in	0.136 in	115 °	410 lm	395 lm	380 lm	1.05 A	85	11.3 V
CreeLED, Inc. XHP35A-H0-0000-0D0PA427E	1.8 °C/W	Warm White	1414 (3535 Metric)	2700 K	5-Step MacAdam Ellipse	Surface Mount	93 lm/W	350 mA	0.115 in	0.136 in	0.136 in	115 °	380 lm	368 lm	355 lm	1.05 A	85	11.3 V
CreeLED, Inc. XHP35A-H0-0000-0D00C40DT	1.8 °C/W	Cool White	1414 (3535 Metric)	7000 K		Surface Mount	125 lm/W	350 mA	0.115 in	0.136 in	0.136 in	115 °	510 lm	493 lm	475 lm	1.05 A		11.3 V	68
CreeLED, Inc. XHP35A-H0-0000-0D0UB457E	1.8 °C/W	Cool White	1414 (3535 Metric)	5700 K	5-Step MacAdam Ellipse	Surface Mount	107 lm/W	350 mA	0.115 in	0.136 in	0.136 in	115 °	440 lm	425 lm	410 lm	1.05 A	90	11.3 V
CreeLED, Inc. XHP35A-H0-0000-0D0HD20E1	1.8 °C/W	Cool White	1414 (3535 Metric)	6500 K		Surface Mount	134 lm/W	350 mA	0.115 in	0.136 in	0.136 in	115 °	550 lm	530 lm	510 lm	1.05 A	80	11.3 V

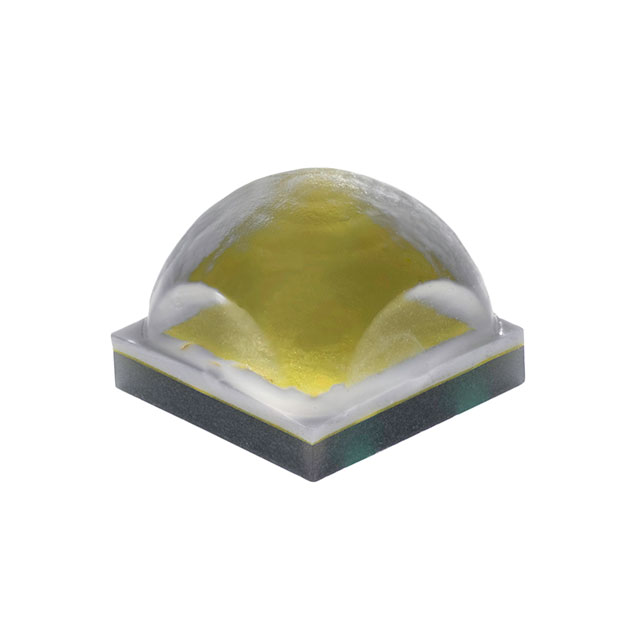

CreeLED, Inc. XHP35A-00-0000-0D0PB427E	1.8 °C/W	Warm White	1414 (3535 Metric)	2700 K	5-Step MacAdam Ellipse	Surface Mount	107 lm/W	350 mA	0.115 in	0.136 in	0.136 in	125 °	440 lm	425 lm	410 lm	1.05 A	85	11.3 V
CreeLED, Inc. XHP35A-H0-0000-0D0BC20E5	1.8 °C/W	Neutral White	1414 (3535 Metric)	4000 K		Surface Mount	116 lm/W	350 mA	0.115 in	0.136 in	0.136 in	115 °	475 lm	458 lm	440 lm	1.05 A	70	11.3 V
CreeLED, Inc. XHP35A-H0-0000-0D0PB40E3	1.8 °C/W	Cool White	1414 (3535 Metric)	5000 K		Surface Mount	107 lm/W	350 mA	0.115 in	0.136 in	0.136 in	115 °	440 lm	425 lm	410 lm	1.05 A	85	11.3 V
CreeLED, Inc. XHP35A-H0-0000-0D0HD20E4	1.8 °C/W	Neutral White	1414 (3535 Metric)	4500 K		Surface Mount	134 lm/W	350 mA	0.115 in	0.136 in	0.136 in	115 °	550 lm	530 lm	510 lm	1.05 A	80	11.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Tape & Reel (TR)	1000	$ 4.51	<1d
		2000	$ 4.31

CAD

3D models and CAD resources for this part

Description

General part information

XHP35A Series

LED Lighting Xlamp® XHP35 White, Cool 5000K 5-Step MacAdam Ellipse 11.3V 350mA 115° 1414 (3535 Metric)

Documents

Technical documentation and resources

XHP35A-H0-0000-0D0PB450E | Datasheet

Datasheet
