1435A

Active

Hammond Manufacturing

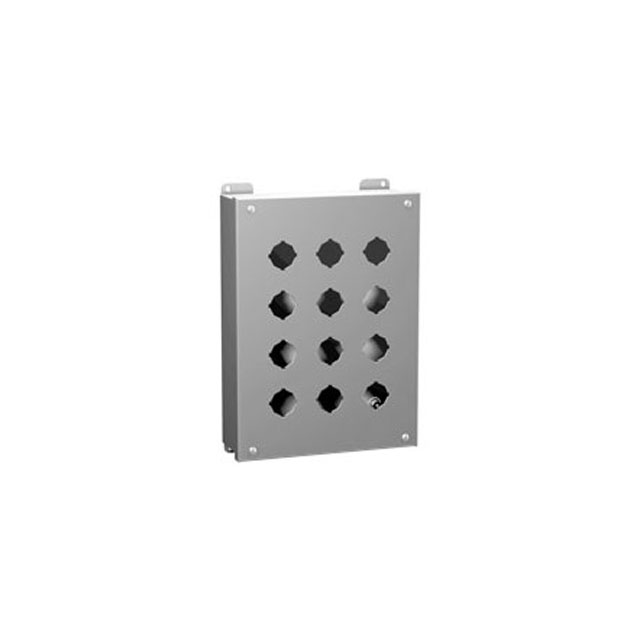

BOX STEEL GRAY 3.5"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

1435A

Active

Hammond Manufacturing

BOX STEEL GRAY 3.5"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 68.97
		5	$ 64.66
		10	$ 60.35
		25	$ 59.27
		50	$ 58.19
		100	$ 57.33

Description

General part information

1435 Series

Box Metal, Steel Gray Cover Included 3.500" L x 3.250" W (88.90mm x 82.55mm) X 2.750" (69.85mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1435A	1435 Series

Area (L x W)	11.5 in²	11.5 - 126 in²
Area (L x W)	74 cm²	74 - 813 cm˛
Color	Gray	Natural, Gray
Container Type	Box	Box
Design	Cover Included	Cover Included, Hinged Door, Lid
Features	Pushbutton Holes - 1	Pushbutton Holes - 1
Features	-	2 - 16 Cable Entries
Features	-	9
Height [z]	69.85 mm	69.85 - 76.2 mm
Height [z]	2.75 in	2.75 - 3 in
Material	Metal, Steel	Metal, Steel
Ratings	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12	NEMA 4, NEMA 4X, IP66, JIC EGP-1-1967, UL-508, NEMA 3R, NEMA 13, IP54, NEMA 12
Size / Dimension	-	82.55 mm
Size / Dimension [x]	3.5 in	3.5 - 11.75 "
Size / Dimension [x]	88.9 mm	88.9 - 298.45 mm
Size / Dimension [y]	3.25 "	3.25 - 10.75 "
Size / Dimension [y]	82.55 mm	82.55 - 273.05 mm
Thickness	16 Gauge	14 - 16 Gauge
Weight	907.2 g	1.4 - 907.2 kg
Weight	2 lbs	2 - 10 lbs

1435 Series

BOX S STL NAT 10.25"L X 3.25"W

Part	Area (L x W)	Area (L x W)	Weight	Weight	Features	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Thickness	Ratings	Design	Color	Features	Size / Dimension [y]	Material	Features [custom]
Hammond Manufacturing 1435MS16D	215 cm˛	33.3 in²	4 lbs	1.8 kg	4 Cable Entries	Box	3.25 "	10.25 "	82.55 mm	260.35 mm	69.85 mm	2.75 in	14 Gauge	IP66, JIC EGP-1-1967, NEMA 3R, NEMA 4, NEMA 4X, UL-508	Cover Included	Natural
Hammond Manufacturing 1435S16O			8 lbs	3.6 kg	12	Box					76.2 mm	3 in	14 Gauge	IP66, JIC EGP-1-1967, NEMA 3R, NEMA 4, NEMA 4X, UL-508	Hinged Door, Lid	Natural
Hammond Manufacturing 1435MSSA	74 cm²	11.5 in²	2 lbs	907.2 g		Box	3.25 "	3.5 in	82.55 mm	88.9 mm	69.85 mm	2.75 in	16 Gauge	IP66, JIC EGP-1-1967, NEMA 3R, NEMA 4, NEMA 4X, UL-508	Cover Included	Natural	Pushbutton Holes - 1
Hammond Manufacturing 1435B	121 cm²	18.7 in²	3.1 lbs	1.4 kg	2 pcs per Pkg	Box	3.25 "	5.75 in		146.05 mm	69.85 mm	2.75 in	16 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Cover Included	Gray		82.55 mm	Metal, Steel
Hammond Manufacturing 1435S16D	215 cm˛	33.3 in²	4 lbs	1.8 kg	4 Cable Entries	Box	3.25 "	10.25 "	82.55 mm	260.35 mm	69.85 mm	2.75 in	14 Gauge	IP66, JIC EGP-1-1967, NEMA 3R, NEMA 4, NEMA 4X, UL-508	Cover Included	Natural
Hammond Manufacturing 1435K	521 cm²	80.8 in²	7 lbs	3.2 kg		Box	8.5 "	9.5 "	215.9 mm	241.3 mm	76.2 mm	3 in	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Hinged Door, Lid	Gray			Metal, Steel	9
Hammond Manufacturing 1435S16A	74 cm²	11.5 in²	2 lbs	907.2 g		Box	3.25 "	3.5 in	82.55 mm	88.9 mm	69.85 mm	2.75 in	16 Gauge	IP66, JIC EGP-1-1967, NEMA 3R, NEMA 4, NEMA 4X, UL-508	Cover Included	Natural	Pushbutton Holes - 1
Hammond Manufacturing 1435MS16O			8 lbs	3.6 kg	12	Box					76.2 mm	3 in	14 Gauge	IP66, JIC EGP-1-1967, NEMA 3R, NEMA 4, NEMA 4X, UL-508	Hinged Door, Lid	Natural
Hammond Manufacturing 1435F	292 cm²	45.3 in²	5 lbs	2.3 kg	4 Cable Entries	Box	6.25 "	7.25 in	158.75 mm	184.15 mm	76.2 mm	3 in	14 Gauge	IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508	Hinged Door, Lid	Gray			Metal, Steel
Hammond Manufacturing 1435SSB	121 cm²	18.7 in²	3.1 lbs	1.4 kg	2 pcs per Pkg	Box	3.25 "	5.75 in		146.05 mm	69.85 mm	2.75 in	16 Gauge	IP66, JIC EGP-1-1967, NEMA 3R, NEMA 4, NEMA 4X, UL-508	Cover Included	Natural		82.55 mm
