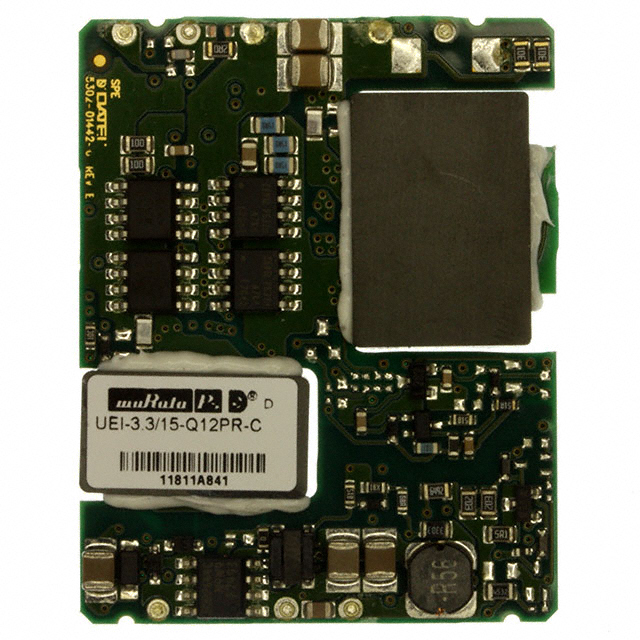

UEI-5/12-Q48PR-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UEI-5/12-Q48PR-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UEI-5/12-Q48PR-C | UEI-5 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 12 A | 10 - 12 A |
| Efficiency | 91 % | 90 - 91 % |
| Features | OVP, OTP, OCP, Remote On/Off, SCP | OVP, OTP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9-DIP Module, 8 Leads | 9-DIP Module, 8 Leads |
| Power (Watts) | 60 W | 50 - 60 W |
| Size / Dimension [x] | 1.9 in | 1.9 in |
| Size / Dimension [x] | 48.3 mm | 48.3 mm |
| Size / Dimension [y] | 38.1 mm | 38.1 mm |
| Size / Dimension [y] | 1.5 in | 1.5 in |
| Size / Dimension [z] | 9.7 mm | 9.7 mm |
| Size / Dimension [z] | 0.38 in | 0.38 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 18 V | 9 - 18 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UEI-5 Series
DC DC CONVERTER 5V 50W
| Part | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Number of Outputs | Type | Control Features | Current - Output (Max) [Max] | Voltage - Output 1 | Package / Case | Voltage - Input (Max) [Max] | Voltage - Isolation | Efficiency | Power (Watts) | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UEI-5/10-Q12NR-C | Through Hole | OCP, OTP, OVP, Remote On/Off, SCP | 85 °C | -40 °C | 9 V | 1 | Isolated Module | Active Low, Enable | 10 A | 5 V | 9-DIP Module, 8 Leads | 36 V | 2250 VDC | 90 % | 50 W | ITE (Commercial) | 9.7 mm | 38.1 mm | 1.9 in | 48.3 mm | 0.38 in | 1.5 in |
Murata Power Solutions Inc. UEI-5/12-Q48PR-C | Through Hole | OCP, OTP, OVP, Remote On/Off, SCP | 85 °C | -40 °C | 18 V | 1 | Isolated Module | Active High, Enable | 12 A | 5 V | 9-DIP Module, 8 Leads | 75 V | 2250 VDC | 91 % | 60 W | ITE (Commercial) | 9.7 mm | 38.1 mm | 1.9 in | 48.3 mm | 0.38 in | 1.5 in |
Description
General part information
UEI-5 Series
Isolated Module DC DC Converter 1 Output 5V 12A 18V - 75V Input
