GSF1.2002.31

Active

SCHURTER Inc.

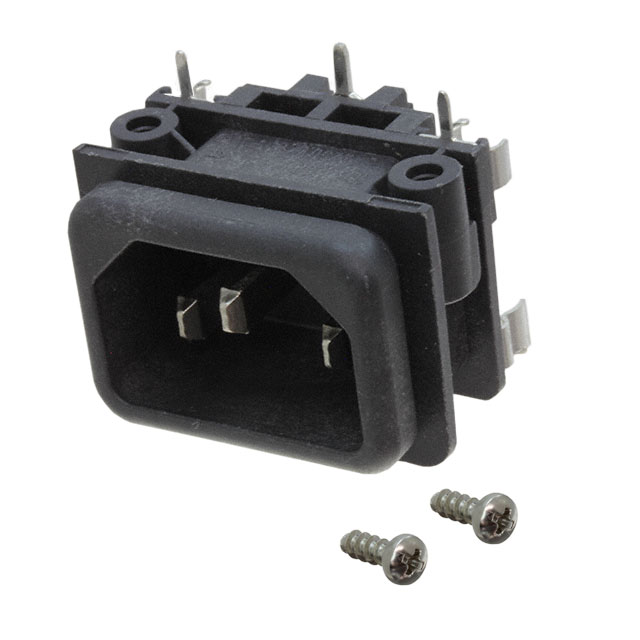

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE RA 1 PORT

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE RA 1 PORT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GSF1.2002.31	GSF1.2002 Series

Accomodates a Fuse	True	True
Approval Agency	CCC, UL, CSA, ENEC	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Mounting Hardware	Mounting Hardware
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions	-	30.3 mm
Panel Cutout Dimensions	-	22.3 mm
Panel Thickness	-	0.079 - 0.236 in
Panel Thickness	-	2 - 6 mm
Panel Thickness	-	2.5 mm
Panel Thickness	-	0.098 in
Panel Thickness [custom]	0.059 in	0.059 in
Panel Thickness [custom]	1.5 mm	1.5 mm
Termination	Solder	Solder
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

AC POWER ENTRY MODULES GSF1 PWR ENTRY MODUL 10A

Part	Filter Type	Connector Style	Mounting Type	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Connector Type	Approval Agency	Ingress Protection	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Material Flammability Rating	Panel Thickness [custom]	Panel Thickness [custom]	Panel Thickness [x]	Panel Thickness [x]
SCHURTER Inc. GSF1.2002.01	Unfiltered - Commercial	IEC 320-C14	Panel Mount, Flange, Through Hole, Right Angle	0.236 in	6 mm	250 VAC	10 A	Fuse Holder	Receptacle, Male Blades - Module	CCC, CSA, ENEC, UL	IP40	Solder	30.3 mm	22.3 mm	Mounting Hardware	UL94 V-0
SCHURTER Inc. GSF1.2002.31	Unfiltered - Commercial	IEC 320-C14	Panel Mount, Flange, Through Hole, Right Angle			250 VAC	10 A	Fuse Holder	Receptacle, Male Blades - Module	CCC, CSA, ENEC, UL	IP40	Solder			Mounting Hardware	UL94 V-0	0.059 in	1.5 mm
SCHURTER Inc. GSF1.2002.51	Unfiltered - Commercial	IEC 320-C14	Panel Mount, Flange, Through Hole, Right Angle			250 VAC	10 A	Fuse Holder	Receptacle, Male Blades - Module	CCC, CSA, ENEC, UL	IP40	Solder			Mounting Hardware	UL94 V-0			2.5 mm	0.098 in
SCHURTER Inc. GSF1.2002.41	Unfiltered - Commercial	IEC 320-C14	Panel Mount, Flange, Through Hole, Right Angle	0.079 in	2 mm	250 VAC	10 A	Fuse Holder	Receptacle, Male Blades - Module	CCC, CSA, ENEC, UL	IP40	Solder			Mounting Hardware	UL94 V-0
SCHURTER Inc. GSF1.2002.71	Unfiltered - Commercial	IEC 320-C14				250 VAC	10 A		Receptacle, Male Blades - Module	CCC, CSA, ENEC, UL	IP40					UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
