9429 010500

Active

Belden Inc.

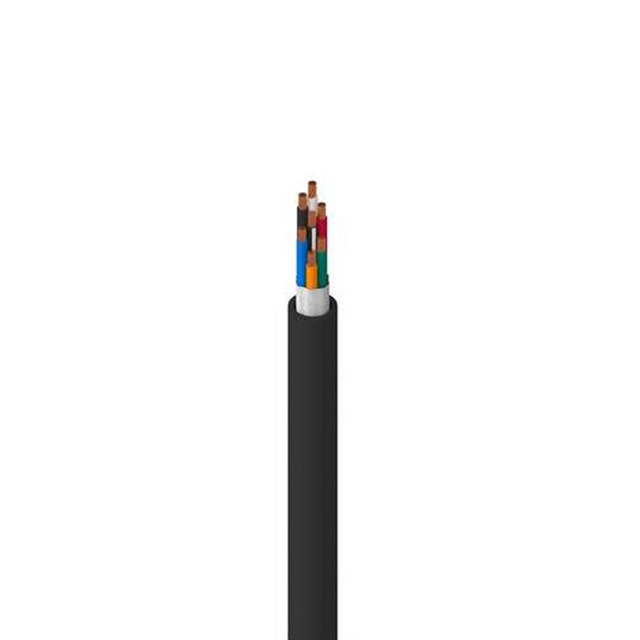

CABLE 20COND 16AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 20COND 16AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	9429 010500

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	0.862 "
Jacket (Insulation) Diameter [diameter]	21.89 mm
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	2.54 mm
Jacket (Insulation) Thickness	0.1 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	20
Ratings	UL Style SO
Usage	Cord and Cordset
Voltage	600 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Number of Conductors	Voltage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length [x]	Length [x]	Conductor Insulation	Jacket (Insulation) Material	Wire Gauge	Ratings
Belden Inc. 9429 010500	34 AWG	65	Cord and Cordset	20	600 V	Multi-Conductor	2.54 mm	0.1 in	Copper Bare	0.862 "	21.89 mm	Black	500 '	152.4 m	Ethylene Propylene Terpolymer Rubber (EPDM)	Rubber	16 AWG	UL Style SO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 39.78

General part information

20 Conductor Multi-Conductor Cable Black 16 AWG 500.0' (152.4m)
