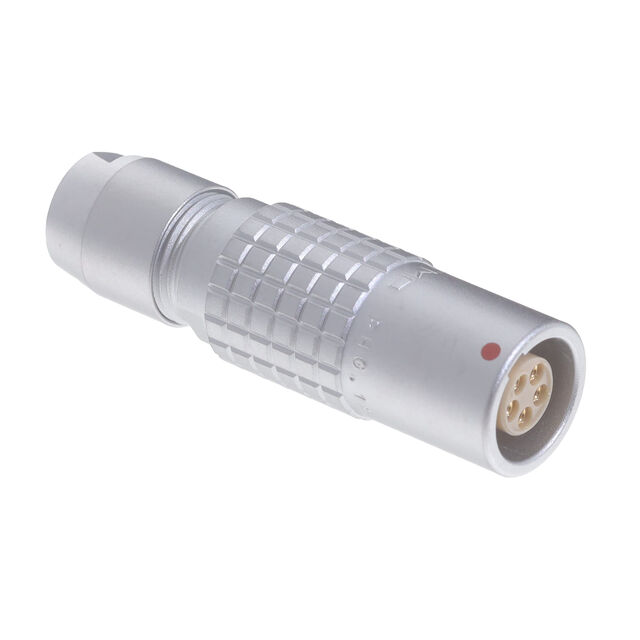

PHG.1B.305.CLLD52

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHG.1B.305.CLLD52

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.25
		10	$ 40.50
		25	$ 38.75
		50	$ 37.50
		100	$ 36.25
		250	$ 34.25

Description

General part information

PHG.1B Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHG.1B.305.CLLD52	PHG.1B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome, Black Chrome
Cable Opening	-	0.122 - 0.165 in
Cable Opening	-	6.2 mm
Cable Opening	-	5.2 - 7.2 mm
Cable Opening	-	0.205 - 0.283 in
Cable Opening	-	0.244 - 0.299 in
Cable Opening	-	0.244 - 0.283 in
Cable Opening	-	6.2 - 7.2 mm
Cable Opening	-	7.6 mm
Cable Opening	-	0.106 - 0.122 in
Cable Opening	-	0.087 - 0.106 in
Cable Opening	-	2.7 - 3.1 mm
Cable Opening	-	2.2 - 2.7 mm
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	3.1 - 4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle Housing, Insert Shell
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Contact Shape	-	Circular
Contact Size	-	0.7 mm
Contact Type	-	Crimp
Current Rating (Amps)	9 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell
Housing Color	-	Silver, Black
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included, Contacts Not Included; Insert Not Included
Number of Positions	-	2 - 14
Number of Positions	-	16
Number of Positions	-	4
Number of Positions	-	7
Number of Positions	-	3
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 731
Shielding	Shielded	Shielded
Termination	-	Crimp
Type	-	For Female Sockets

PHG.1B Series

CONN RCPT FMALE 6P GOLD SLDR CUP

...

Part	Color	Shell Size - Insert	Primary Material	Shell Finish	Backshell Material, Plating	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Connector Type	Shell Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shielding	Contact Finish - Mating	Material Flammability Rating	Mounting Type	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Insert Material	Orientation	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Termination
LEMO PHG.1B.306.CLLD42Z	Silver	306	Metal	Chrome	Brass, Chrome	Bronze	Push-Pull	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	7 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)	6	3.1 mm, 4.2 mm	0.122 in, 0.165 in	Polyetheretherketone (PEEK)	G
LEMO PHG.1B.304.CLLD42Z	Silver	304	Metal	Chrome	Brass, Chrome	Bronze	Push-Pull	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	10 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)	4	3.1 mm, 4.2 mm	0.122 in, 0.165 in	Polyetheretherketone (PEEK)	G
LEMO PHG.1B.731.CLLD42	Silver	731	Metal	Chrome	Brass, Chrome	Bronze	Push-Pull	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	12 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)		3.1 mm, 4.2 mm	0.122 in, 0.165 in	Polyetheretherketone (PEEK)	G
LEMO PHG.1B.305.CLLD62	Silver	305	Metal	Chrome	Brass, Chrome	Bronze	Push-Pull	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	9 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)				Polyetheretherketone (PEEK)	G	6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO PHG.1B.306.CLLD42	Silver	306	Metal	Chrome	Brass, Chrome	Bronze	Push-Pull	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	7 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)	6	3.1 mm, 4.2 mm	0.122 in, 0.165 in	Polyetheretherketone (PEEK)	G
LEMO PHG.1B.308.CLLD62Z	Silver	308	Metal	Chrome	Brass, Chrome	Bronze	Push-Pull	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	5 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)	8			Polyetheretherketone (PEEK)	G	6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO PHG.1B.307.CLYD72Z	Silver	307	Metal	Chrome	Brass, Chrome		Push-Pull			IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	7 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)	7			Polyetheretherketone (PEEK)	G					0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO PHG.1B.307.CLLD72Z	Silver	307	Metal	Chrome	Brass, Chrome	Bronze	Push-Pull	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	7 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)	7			Polyetheretherketone (PEEK)	G					0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO PHG.1B.308.CLLD76	Silver	308	Metal	Chrome	Brass, Chrome	Bronze	Push-Pull	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	5 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)	8			Polyetheretherketone (PEEK)	G		7.2 mm	0.283 in	0.299 in			7.6 mm
LEMO PHG.1B.304.CYMD42Z	Silver	304	Metal	Chrome	Brass, Chrome	Bronze	Push-Pull	59 Áin	1.5 Ám	IP50	Receptacle, Female Sockets	Brass	Backshell	-55 °C	250 °C	10 A	Shielded	Gold	UL94 V-0	Free Hanging (In-Line)	4	3.1 mm, 4.2 mm	0.122 in, 0.165 in	Polyetheretherketone (PEEK)	G								Crimp
