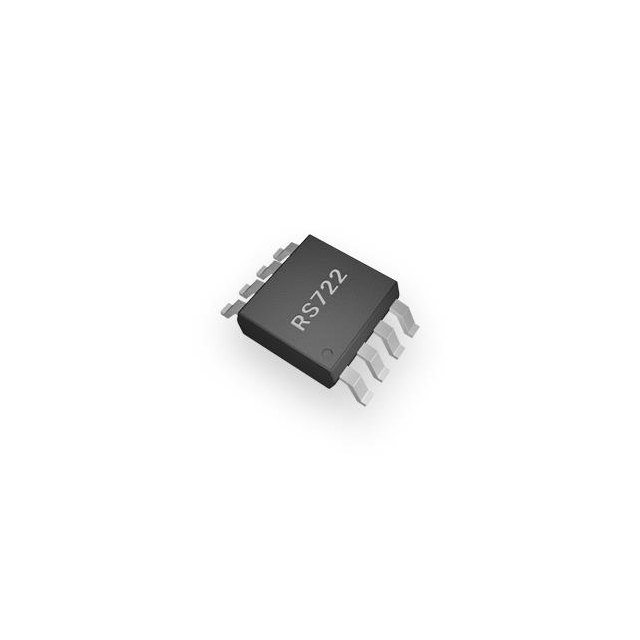

RS722PXK
ActiveRunic Technology
IC CMOS 2 CIRCUIT 8SOIC
RS722PXK
ActiveRunic Technology
IC CMOS 2 CIRCUIT 8SOIC
Description
General part information
RS722PXK
CMOS Amplifier 2 Circuit Rail-to-Rail 8-SOIC
Technical Specifications
Parameters and characteristics for this part
| Specification | RS722PXK |
|---|---|
| Amplifier Type | CMOS |
| Current - Input Bias | 1 pA |
| Current - Output / Channel | 140 mA |
| Current - Supply | 1.1 mA |
| Gain Bandwidth Product | 10 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Rail-to-Rail |
| Package Length | 0.154 in |
| Package Name | 8-SOIC |
| Package Width | 3.9 mm |
| Slew Rate | 6 V/µs |
| Voltage - Input Offset | 500 µV |
| Voltage - Supply Span (Max) | 5.5 V |
| Voltage - Supply Span (Min) | 2.5 V |
